Redarc 15A Battery Management System

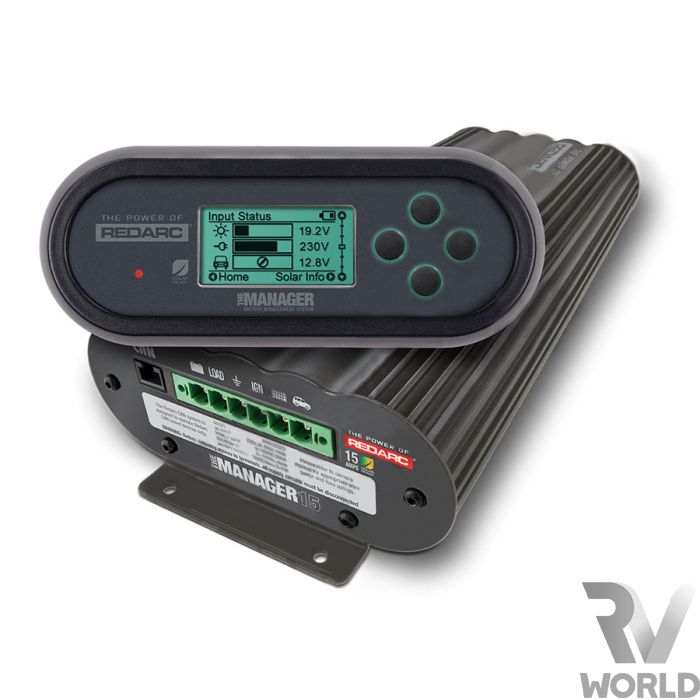

REDARC Manager15 Battery Manager System
Based on the proven Manager30 platform, The Manager15 is a complete battery management system for charging auxiliary batteries used in recreational automotive and marine applications. The DC to DC charger incorporates AC, DC and solar inputs to achieve the best charge for an auxiliary battery.
Features:
Multi Stage AC-DC Battery Charger
Multi Stage DC to DC Charger
Maximum Power Point Tracking Solar Regulator
Battery Monitor
Dual Battery Isolator
Load Disconnect Controller
Super quiet operation
Charges AGM, Gel, Calcium content, VRLA, Standard and Lead Acid batteries
Tested to mains power safety standards in Australia, New Zealand and Europe
Specifications:
Output System Voltage 12VDC
Maximum Charging Voltage 16.0V* (*Calcium setting in storage mode)
Output Current Rating (Cont.) 15A
Output Power 260W
Input Fuse Rating 40A
Output Fuse Rating 20-23A
Warranty 2 Years
Protection Short Circuit, Surge, Reverse Polarity, Overload
Input (Operating) Voltage 9 - 32VDC
Dimensions (mm): 445L x 185W x 79H
Weight: 5.5kg
| Nominal voltage | 12V |
|---|---|
| Dimensions (mm) | 445L x 185W x 79H |
| Weight | 5.5kg |
| Warranty | 2 Years |
