Redarc 30A Battery Management System

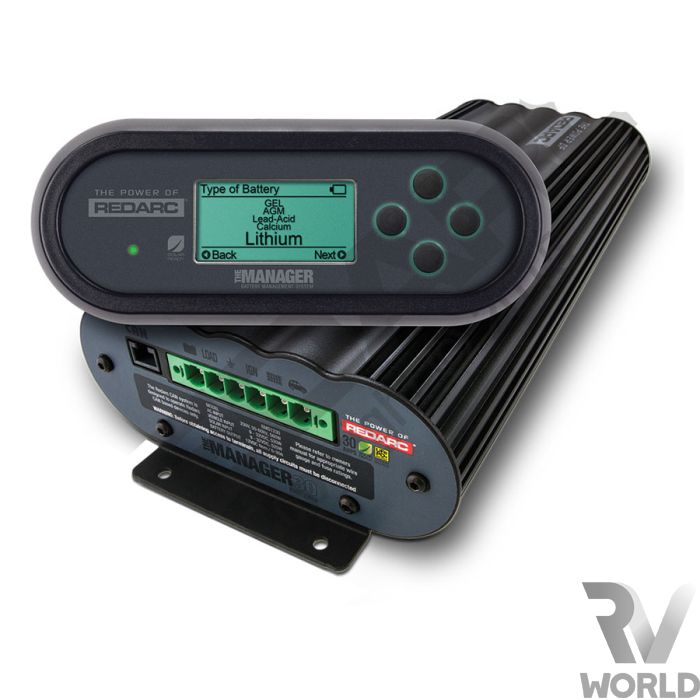

REDARC Manager30 Battery Manager System
The REDARC Manager30 is a 30A state-of-the-art battery management system designed to charge and maintain auxiliary batteries by incorporating AC, DC and solar inputs, ideal for recreational vehicles, caravans, and camper trailers with multiple battery banks.
Features:
Multi Stage AC-DC Battery Charger
Multi Stage DC to DC Charger
Maximum Power Point Tracking Solar Regulator
Battery Monitor
Dual Battery Isolator
Load Disconnect Controller
Super quiet operation
Charges AGM, Gel, Calcium content, VRLA, Standard Lead Acid and LiFePO4 batteries
Tested to mains power safety standards in Australia, New Zealand and Europe
Specifications:
Output System Voltage 12VDC
Maximum Charging Voltage 16.0V* (*Calcium setting in storage mode)
Output Current Rating (Cont.) 30A
Output Power 520W
Input Fuse Rating 40A
Output Fuse Rating 40A
Warranty 2 Years
Protection Short Circuit, Surge, Reverse Polarity, Overload
Input (Operating) Voltage 240VAC / 9 - 32VDC
Dimensions (mm) 445L x 185W x 79H
Weight: 5.5kg
| Nominal voltage | 12V |
|---|---|
| Charging current | 30A DC |
| Dimensions (mm) | 445L X 158W X 79H |
| Weight | 5.5 kg |
| Warranty | 2 Years |
