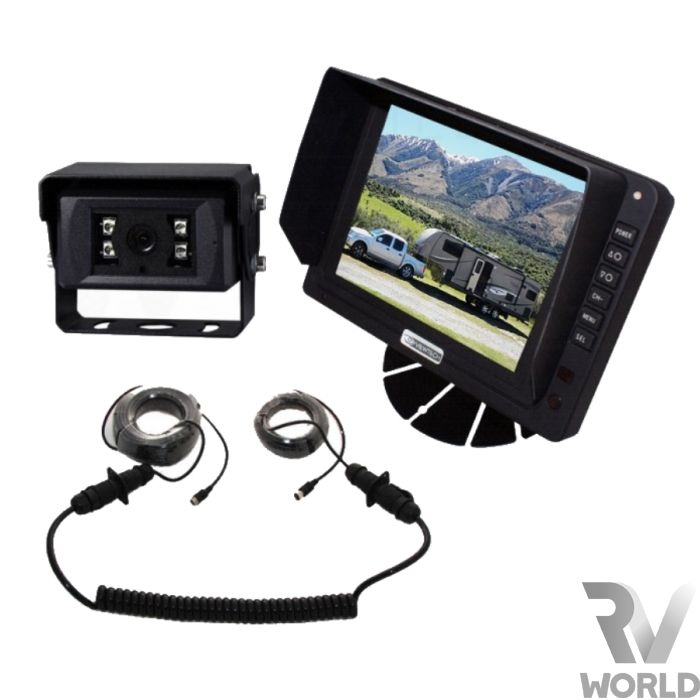

Viewtech 5" Reversing Camera Kit For Caravans and 5th Wheelers
Get rid of your towing mirrors with the caravan and 5th wheeler rear view system. The trailer coupler allows you to easily connect and disconnect the camera. You will always be able to see who is directly behind you reducing driving distress and increasing road safety
Reversing Camera Kit for 5th Wheelers & Caravans
Get rid of your towing mirrors with this caravan / 5th wheeler rearview system. The trailer coupler allows you to easily connect and disconnect the camera. You will always be able to see who is directly behind you reducing driving distress and increasing road safety.
The system is also fully expandable so you can add another camera onto the tow vehicle for hitching up your vehicle! Never get out of your vehicle again to check the distance to the tow ball.
This system can accept up to three cameras, which can be manually selected by a key on the monitor or by an electrical trigger i.e. reverse select.
We also have multiple camera angles available. Many customers prefer a wider angle for manoeuvering trailers, while others prefer a narrower field of view that is closer to that of a rear vision mirror - this is generally used for watching traffic behind rather than manoeuvering/reversing.
The heavy duty camera is also built to last - Made out of cast aluminium it can handle the odd knock or two.
120 degree angle field of view.
CCD Image Sensor - Provides significantly better images under very low and very bright lighting conditions.
Infrared Night Vision - provides up to 5-10m of illumination in pitch black conditions.
Audio Monitoring - Camera has a built in microphone helpful when the driver needs the assistance of a helper while backing.
Built in heater to stop fogging - Automatic defrosting and demisting to stop fogging (heater kicks in when the temperature drops below 10 degrees)
Automatic System Switching - System can switch on automatically whenever the vehicle's transmission is placed in reverse and also be manually switch on while driving.
Mirror Image Capability - In order to see the same type of image that you would see in a rear view mirror.
TFT-LCD screen - High resolution TFT-LCD screen for superior brightness & best picture under the wide variety of lighting conditions.
Up to 3 camera inputs.
10-32V Input Voltage - Wide Input Voltage for a range of automotive applications
5" monitor (can be upgraded to 7" monitor in the product options)
Coupler with 10m cable at vehicle end and 20m at caravan end
Heavy duty Infared rear view camera
All cables and connectors for installation
Wired vs. Wireless
We often get asked the difference between Wired & wireless systems. While the picture produced by a high quality wireless system may be okay when the vehicle is stationary, every wireless device (every one) is susceptible to interference, and the interference will be worse when the vehicle is in motion. Because a wireless system transmits a video image through the air, instead of via a cable, there can be some interference from a variety of sources, including electrical interference, radio and television transmitters, and many other sources encountered as the vehicle moves. Most wireless systems have directional antennas on the camera and receiver that must be aimed directly at each other, these antennas are easily broken during normal use. We personally prefer a wired system. If you insist on a wireless rear view system, you will have to settle for a lower quality picture than you would have with a high quality wired system, and at least some occasional interference.
|Monitor screen size / type||5" Colour|
|Monitor operating voltage||10 to 32 Volts DC|
|Monitor power input||12 watts|
|Monitor dimensions (mm)||155W x 107H x 32D|
|Camera resolution||1280 x720 pixels|
|Camera light sensitivity||0 Lux|
|Camera picture angle||160 deg aperture angle, diagonal|
|Camera dimensions (mm)||86W x 72Hx 75D|
