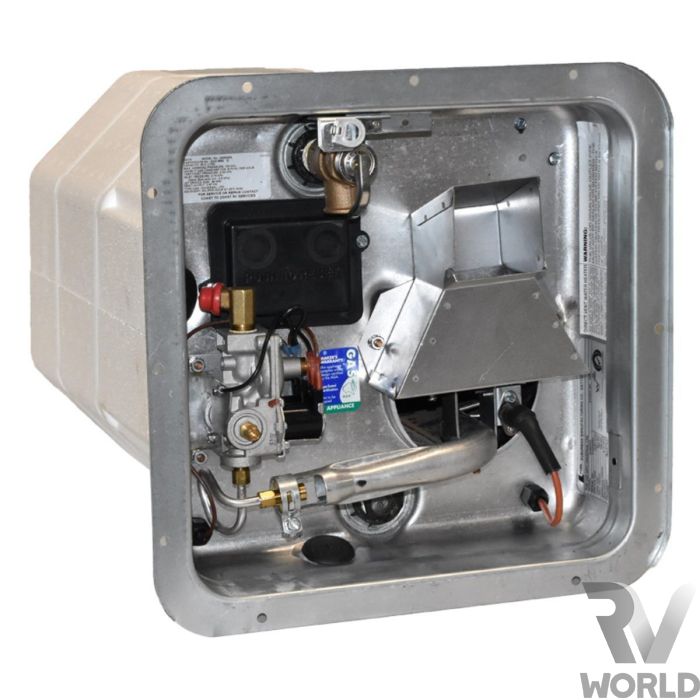

Suburban 20.3L Water Heater - Gas/230V
Suburban SW6DERA Boiler
All Suburban Water Heaters are designed for easy installation, operation and maintenance. The limit switch and reset button are conveniently located in a housing behind the removable outer door. The electric heat element and combination drain plug/anode rod are also located there, making service a breeze.
Suburban uses a porcelain-lined, steel water heater tank with an anode rod to "absorb" the electrolytic action - just like your water heater at home. The 'sacrificial' anode should be checked yearly. Usually, last approx 2–3 years and then needs replacement.
Easy installation from outside
Removable outer door for easy access
Faster Recovery - Fast recovery means more hot water.
Designed for easy installation, operation and maintenance.
Longer Life - sacrificial anode
Wall panel switch electronically ignites (via 12V) and controls the water heater
Includes a 1440W 240V element
Dimensions (mm): 320H x 320W x 490D (allow an extra 50mm depth for plumbing fittings)
Warranty: 1 year
Heat supply: Gas / 230V
Setpoint Temperature: 54 deg
Burner Rating: 12,000 btu (approx) 4kW
Heated Via: LPG and/or 240V
Recovery: 40L/hr at 45DegC temperature rise
Water inlet: 12mm John Guest
240V power supply is hard-wired to the heater
Pump pressure must not be higher than 45 PSI.
Supplied with water connection fittings which are set up for 12mm John Guest push fit pipe.
Installation must be done by a qualified gas fitter.
|320H x 320W x 490D (allow an extra 50mm depth for plumbing fittings)
|Gas / 230V
