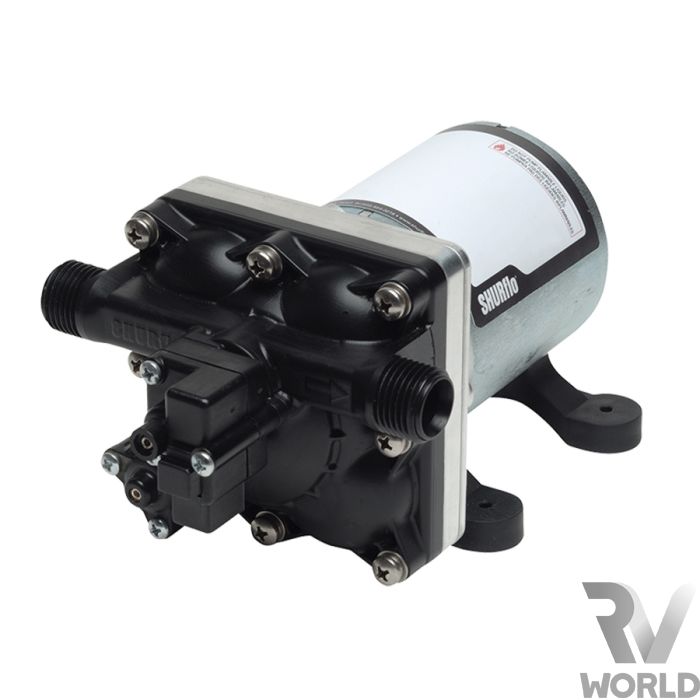

Shurflo Revolution Pump - 11 L/min, 30 PSI
Shurflo Revolution Pump
SHURflo’s New Revolution fresh water pump design was created with a unique one-piece diaphragm and internal by-pass, assuring long life and top performance in all plumbing systems. Designed as the next legendary pump, it is built for high flow demand, low noise and no rapid cycling. SHURflo’s quality reputation has been built on the reliability and dependability of every pump we build.
Features:
Ideal replacement for Series 2088 pumps
C-Tick approved
4 Chamber Diaphragm
Dry Prime up to 1.8m Vertical
Internal By-Pass will prevent rapid cycling
Mounts in any position
An accumulator is NOT required with this pump
Specifications:
12v or 24v options
Shuts off at 30psi
Flow rate is 11 ltr/m
Recommended 5amp fuse
Inlet and outlet connections are 1/2 inch BSP Male thread
Must be installed with a pump filter.
Please also note do not use thread tape with plastic fittings this will cause damage to the plastic housing and cause leakage
Note these pumps are specifically designed for use in RV's / Motorhomes / Caravans / Boats. Please contact us for any other application, as this may void warranty.
| Warranty | 2 year |
|---|---|
| Voltage | 12V or 24V options |
| Current draw | 5A |
| Water pressure rating | 30 PSI |
| Flow rate | 11 L/min |
