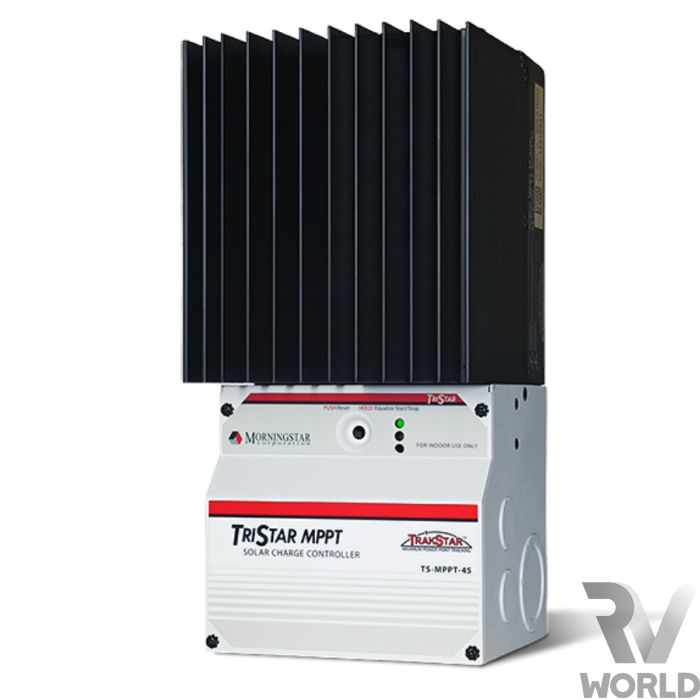

Morningstar Tristar 45A MPPT Solar Regulator

The TriStar MPPT solar controller with TrakStar Technology™ is the world’s most advanced maximum power point tracking photovoltaic (PV) controller
Special Price $1,399.00 Regular Price $1,500.00
In stock
Product Code
RV814
You save $20 - $40

Tristar 45A MPPT Solar Charge Controller

Morningstar’s TriStar MPPT solar controller with TrakStar Technology™ is an advanced maximum power point tracking (MPPT) battery charger for large off-grid solar (PV) systems. The controller provides the industry’s highest peak efficiency of 99% and significantly less power loss compared to other MPPT controllers. The TriStar MPPT features a smart tracking algorithm that maximizes the energy harvest from the PV by rapidly finding the solar array peak power point with extremely fast sweeping of the entire I-V curve.

Features

Maximizes solar energy harvest
Highest peak efficiency of 99%
Rated for up to 45 amps output
Up to 150 volts PV open circuit
Includes remote temperature sensor
Marine grade terminals, epoxy encapsulation and conformal coating
Extremely reliable due to a robust thermal design with no internal cooling fan and no mechanical relays.
Extensive Networking and Communication Capabilities
Metering and Data Logging
5 year warranty

Specifications:

System voltage: 12/24/36/48V
45A Maximum solar input current: 600W @ 12V, 1200W @ 24V, 2400W @ 48V
Self consumption: 2.7W
Suitable battery types: Flooded; Sealed; Gel
Ambient temp. range: –40°C to + 45°C
Dimensions (mm) 291H x 130W x 142D
Weight: 4.2kg

Please note: Unit does not come with a digital meter. It is an optional extra.

More Information
System voltage12/24/36/48V
Maximum solar input current600W @ 12V, 1200W @ 24V, 2400W @ 48V
Self consumption2.7W
Suitable battery typesLead Acid (Flooded), AGM, Gel, Calcium
Ambient temp. range–40°C to + 45°C
Enclosure protection classMarine grade with epoxy encapsulation
Weight4.2kg
Dimensions (mm)291H x 130W x 142D
