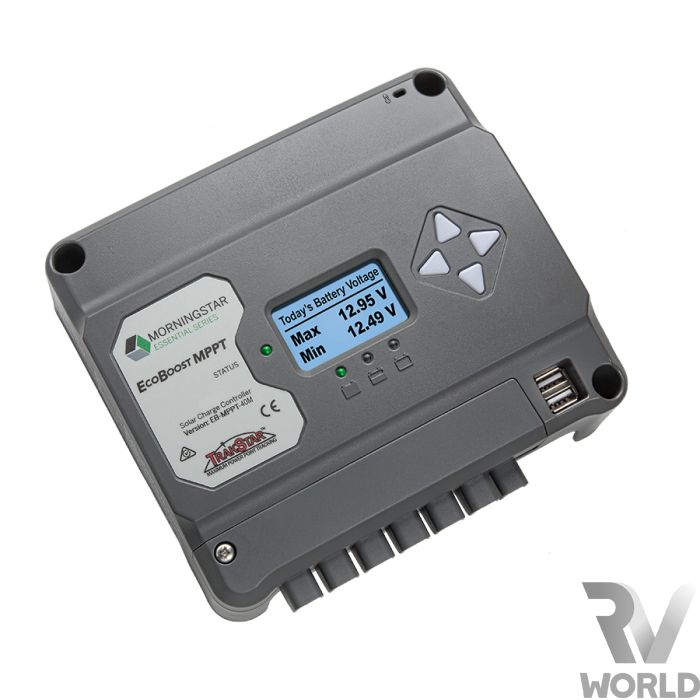

Morningstar EcoBoost 30A MPPT Solar Regulator With Display
Morningstar's new EcoBoost MPPT (Maximum Power Point Tracking) solar charge controller with LCD display.
Morninstar EcoBoost 30M MPPT Solar Charge Controller
The EcoBoost controllers with LCD Display automatically detect 12V or 24V system configuration. They are highly efficient and accurate controllers designed to ensure that batteries attain a complete state of charge.
They are also sophisticated load controllers. Using this feature to manage DC power consumption protects the batteries from over discharge and helps ensure long term system reliability.
Small DC loads can be powered directly from the EcoBoost by way of two USB charging ports.
Developed for residential and leisure consumer applications where an MPPT controller is desired to provide additional power and accommodations for modules that are not supported by other types of controllers. Morningstar EcoBoost controllers act as the central brain of PV powered DC electrical systems and offer outstanding value, performance and dependability.
Key Features and Benefits
Rugged Maintenance-free Design: Conformally coated circuit board and corrosion resistant terminals.
LCD Display screen
Maximizes Energy Harvest: Using TrakStar MPPT technology to determine and adjust to the true maximum power point as solar insolation changes throughout the day.
High Efficiency: At low, medium, and high power levels.
Optional Meter: Provides access to system operational information including current and historical performance data. All EcoBoost “M” controllers include the meter.
USB Charging: Two USB ports with 3 amps of shared charging capacity to charge today’s modern mobile devices.
Self Diagnostics: Continuous monitoring and reporting of any errors through its status LED’s, or its optional display.
Lighting Controller: Uses PV array to switch at dusk and dawn.
Load Controller: Connect DC loads directly to the controller. Programmable load disconnect to protect batteries.
PV Array: Flexibility Enables 2 modules in series to charge a 12V or 24V battery system.
|System voltage||12V 24V|
|Maximum solar input current||400W for 12V battery bank. 800W for 24V battery bank.|
|Maximum load output current||30A|
|Ambient temp. range||-40C to +60C|
|Dimensions (mm)||196W x 173L x 71D|
