Redarc 120W Folding Solar Panel Kit

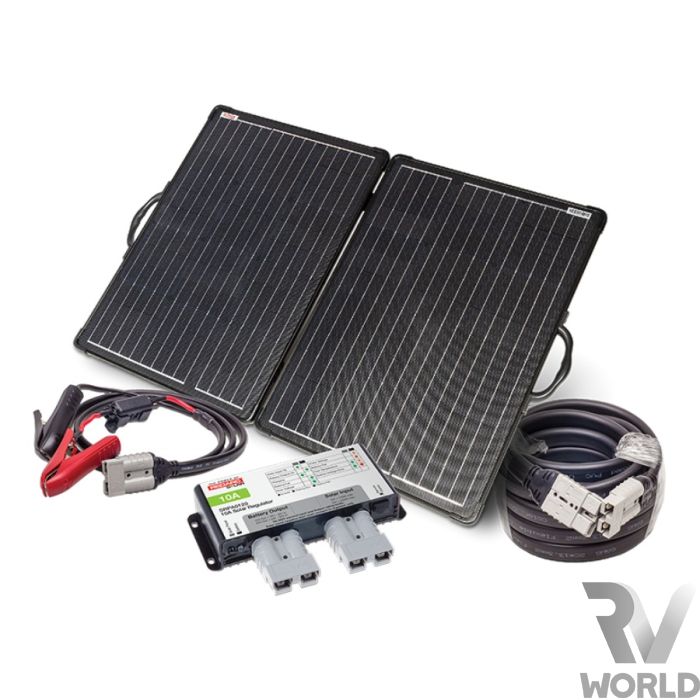

Redarc 120W Monocrystalline Folding Solar Panel Kit
Looking for an off-the-shelf portable folding solar panel kit for your auxiliary battery setup? REDARC’s monocrystalline portable camping solar panels are the perfect addition to any dual battery or off-road setup.
Folding out to 1030 × 715 × 25mm means that this panel tucks away neatly in the vehicle but opens up to capture an effective amount of sun power to keep you in-charge.
This ultralightweight, unglazed panel ensures it is less fragile than many other folding solar panels and features an ETFE (ethylene tetrafluoroethylene) coating designed to protect the Monocrystalline solar cells from damage, as opposed to employing a traditional glass design like many other portable products.
Perfect to add charge via the sun to your in-vehicle battery charger or battery management system for extended stays or additional power to run 12v accessories.
Features:
Ultra-lightweight design
Anderson SB 50 connectors
Stain resistant and flexible ETFE coating
Kit includes a solar regulator and solar cables
Specifications:
Output Power 120W
Maximum Power Voltage 20.0V
Maximum Power Current 6.0A
Connection 50 A Anderson
Construction Monocrystalline
Dimensions 1030 × 715 × 25 mm (open), 515 × 715 × 50 mm (closed)
Operating Temperature −40°C to +85°C
Open Circuit Voltage 24.0v
Short Circuit Current 6.48 A
Weight (kg) 6.3kg
Warranty 2 years
| Weight | 6.3 |
|---|---|
| Dimensions (mm) | 1030 x 715 x 25 (open) , 515 x 715 x 50 (closed) |
| Warranty | 2 years |
| Maximum power | 120W |
| Maximum power voltage | 20.0V |
| Maximum power current | 6.0A |
| Operating temperature | −40°C to +85°C |
