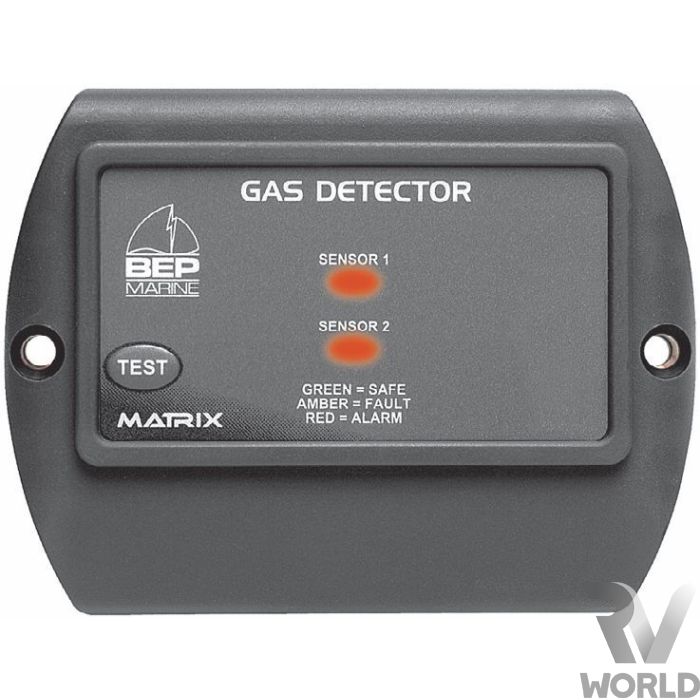

LPG Gas Detector with Exterior Sensor. BEP 600-GD

LPG Gas Detector

The BEP 600-GD gas detector controls up to 2 exterior sensors which detect LPG, petrol and CNC fumes with visual and audible alarms. This gas detector uses a microprocessor control to ensure correct sensor sensitivity. There is a test switch to check the operation of sensors with indicators for fault detection.

A test mode checks operation of sensors with indicators for fault detection.
Self testing capability
Microprocessor control
Provision for external alarm
Provision for bilge blower
Dual sensor capability
One sensor supplied - with a 5m cable

Technical specs:

Power supply: 10-32V
Alarm sensitivity: 20% LEL (Lower explosive limit)
Current draw with 2 sensors: 350mA (max)

Notes: For LPG and petrol fumes which are heavier than air, mount the sensor in a low dry position where the gas is likely to sit. The sensor must be mounted clear of bilge water. For CNG gas, which is lighter than air, mount the sensor just below ceiling height but not above cooking or heating areas.
