Compact Classic Kit 2501. Fridge ≤ 200L with Icebox

Easy to install DIY cooling kit

$1,595.00
In stock
Product Code
R1290
You save $30 - $60

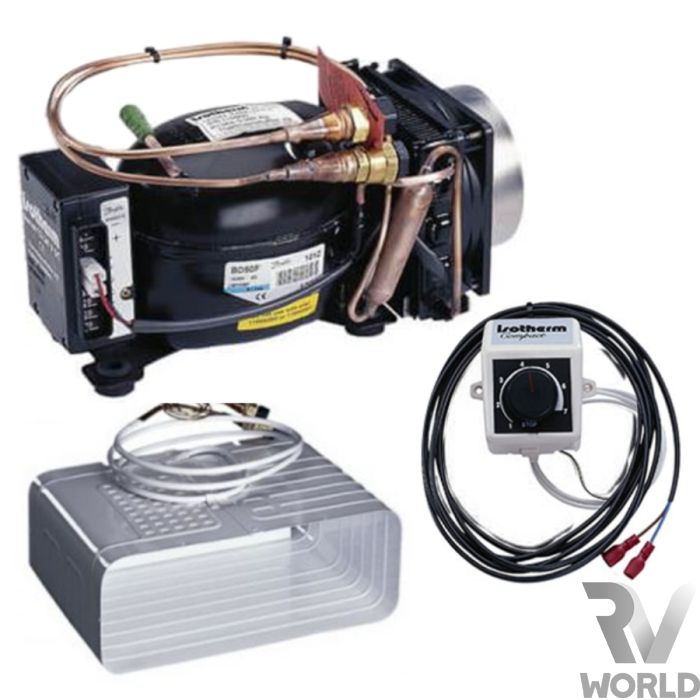

Isotherm Cooling Kit 2501. Fridge with Icebox

When standard units don’t fit, tailor-made, all in one kits can be an alternative. This air-cooled, ice box conversion kit that will refrigerate a space up to 200L. The unit comes pre-charged with quick-connections and 6' of flexible copper refrigeration lines, which makes installation easy.
They come ready for connection to 12/24 V DC and are powerful, economical and superbly quiet in operation. These compressors use the traditional method, blowing air through the condenser by a fan to remove the heat. It is important that the compressor compartment is well ventilated, allowing cold air to enter from below and hot air to escape to the top.

Features:

Fridge / Freezer use
Oval Evaporator Plate
Air-cooled compressor
Mounting bracket
Thermostat
Refrigeration kit for 200L refrigerator
Pre-charged with quick-connects

Specifications:

Voltage:12/24V
Compressor: Danfoss BD50F
Evaporator: Large-O
Evaporator Dimensions (mm): 380L x 140W x 270H
Compressor Dimensions (mm): 315L x 160W x 155H
Maximum capacity:
- ​Fridge unit: 200 L
- Freezer unit (-12°C): 100 L
- Deep Freeze unit (-18°C): 65 L
Kit includes compressor mounting bracket

Designed to cool an insulated space with max volume: 200L

More Information
Fridge capacity200
Overall dimensions (mm)Evaporator: 380 x 140 x 270. Compressor: 315 x 160 x 155
Input voltage options12/24V
Weight9kg
Warranty2 years
