Compact Classic Kit 2007. Fridge Only ≤ 100L

Easy to install DIY cooling kit

$1,195.00
In stock
Product Code
R1285
You save $30 - $60

Isotherm Cooling Kit 2007. Fridge Only

When standard units don’t fit, tailor-made, all in one kits can be an alternative. This air-cooled, ice box conversion kit that will refrigerate a space up to 100L. The unit comes pre-charged with quick-connections and 6' of flexible copper refrigeration lines, which makes installation easy.
They come ready for connection to 12/24 V DC and are powerful, economical and superbly quiet in operation. These compressors use the traditional method, blowing air through the condenser by a fan to remove the heat. It is important that the compressor compartment is well ventilated, allowing cold air to enter from below and hot air to escape to the top.

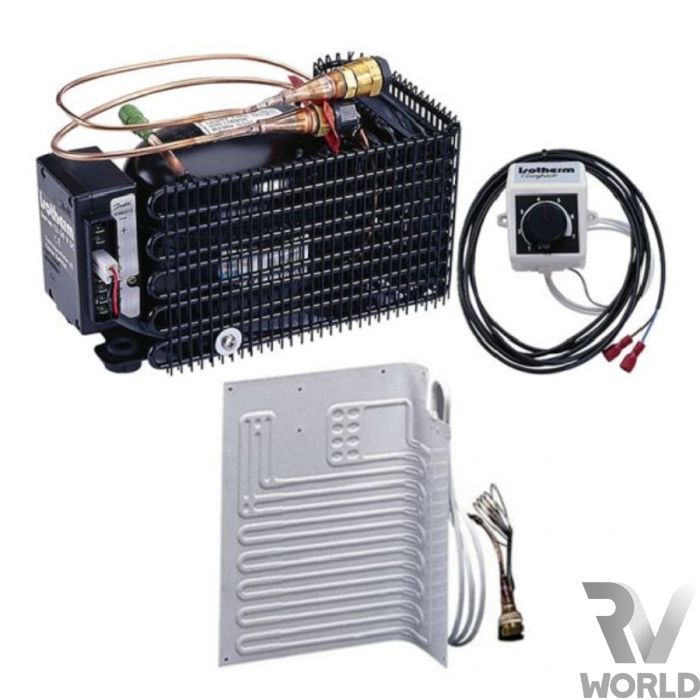

Features:

L-shaped evaporator
Air-cooled compressor
Mounting bracket
Thermostat
Refrigeration kit for 100L refrigerator
Pre-charged with quick-connects

Specifications:

Voltage:12/24V
Compressor: Danfoss BD35F
Evaporator: Small-L
Evaporator Dimensions (mm): 250L x 110W x 350H
Compressor Dimensions (mm): 270L x 160W x 155H
Kit includes compressor mounting bracket

Designed to cool an insulated space with max volume: 100L

More Information
Fridge capacity100L
Overall dimensions (mm)Evaporator: 250 x 110 x 350. Compressor: 270 x 160 x 155
Input voltage options12/24V
Weight9kg
Warranty2 years
