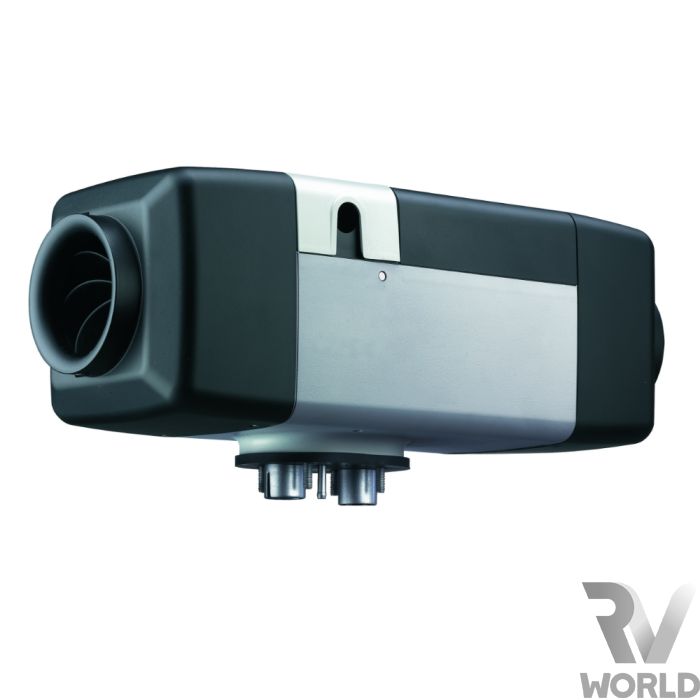

Webasto EVO40 Diesel Heater - 4KW RV Kit
The Webasto EVO40 Diesel Air Heater offers a high heating capacity and optimum economy for your motorhome, caravan or campervan.
Webasto EVO40 Diesel Heater Kit
The Webasto EVO40 diesel air heater is a powerful and economical heater for your motorhome or caravan. With smooth controllability, the EVO40 delivers 4kW of hot blown air and then automatically reduces the heat and the fan speed as the cabin temperature rises for quiet operation and fuel economy.
Features:
Low energy consumption
Exceptionally quiet operation
Cost effective to run
Automatic altitude compensation up to 2200m
New ECU with improved humidity sealing
Improved power and versatility
Short heating-up times
Dehumidification of the cabins
Compact, space-saving design
Specifications:
Voltage: 12V or 24V options
Diesel consumption: 0.18 - 0.49 l/h
Rated power consumption: 15-55 W
Heat output: 4kW
Dimensions (mm): 423L x 148W x 162H
Weight: 5.9kg
Installation Kit
The Webasto EVO40 heater is supplied as a complete installation kit for quick and simple installation.
Heater unit
Control unit (2 options available)
Wiring loom
Bag of mounting hardware
Diesel fuel dosing pump, fuel line & fittings
Fuel pickup for tank
Combustion pipe & Exhaust pipe with clamps
Silencer
Floor mounting plate
Air inlet
2 Outlet Kit
2m ducting
Hose clamps
Y piece
2 wall controller options available for this kit. Please select in product options;
Rotary Controller - Simply turn the hand control dial to start the heater and set your desired temperature.
Digital Multi Controller - Easy to read screen, programming knob and timer function.
| Weight | 5.9kg |
|---|---|
| Dimensions (mm) | 423L x 148W x 162H |
| Warranty | 2 year |
| Voltage | 12V or 24V options |
| Heating capacity | 4000W |
| Fuel Type | Diesel |
| Fuel consumption (max) | 0.49/h |
| Power consumption (max) | 55W |
