Viewtech 5" Light Vehicle Reversing Kit

A high quality reverse camera kit for smaller commercial vehicles
$515.00
In stock
Product Code
R1730
You save $10 - $20

5" Reversing Kit for Light Vehicles

This system is perfect for SUV's, utes and small commercial vehicles.
Featuring a high resolution display with good brightness, auto activation and a high quality CCD night vision reversing camera, this system has all the important factors when choosing a reversing system covered.
Now with an even wider 160° view for extra safety, this amazing field of view allows you to see 8 metres wide at a distance of only 4 metres back. All of this is combined with a 5" high resolution digital LCD monitor. The four large built in infra-red LEDs also provide ample night vision when backing at night.
The large screen, wide field of view and superb night vision make this one of the safest reversing camera systems on the market.

Features:

Auto Powers Up When Ever Reverse Gear Is Selected
Powerful Infrared Night Vision
System Can Also Be Watched All The Time
Up To Three Cameras Can Be Interfaced Into Monitor
Hi Resolution Digital Monitor With Excellent Day Time Brightness And Auto Dim At Night
Flexible Dash Mount Which Can Be Bent To Follow The Contours Of The Dash
Auto Triggering By Reverse Lights Or Any Other Electrical Activation
12v-32v Dynamic Voltage Input Range Perfect For Cars And Trucks
Easy To Instal
Colour CCD Camera With Wide 160° View And Infra-red Night Vision

Specifications:

Monitor Specifications
Screen: 5" TFT LCD Wide angle view
Audio: 1W Built in speaker
Colour System: PAL
Power Supply: 12V-32V DC
Outer Dimensions (mm): 147(W) x 109(H) x 26(D)
Dot Pitch: 0.107h x .37v
Resolution: 640 x 480
Contrast Ratio: 300:1
Brightness: 350cd/m2
Power Consumption: 12W

Camera Specifications
Image Sensor: Sharp 1/4" CCD
Horizontal Resolution: 420 lines
Colour System: PAL
Min Illumination: 0.0Lux
Video Output: 1.0Vp-p 75 Ohms
Electronic Shutter:1/50 to 1/100000 sec
Power: 12V DC
White balance: auto
Angle of View: 160 degrees
Size 192W x 28H x 20D

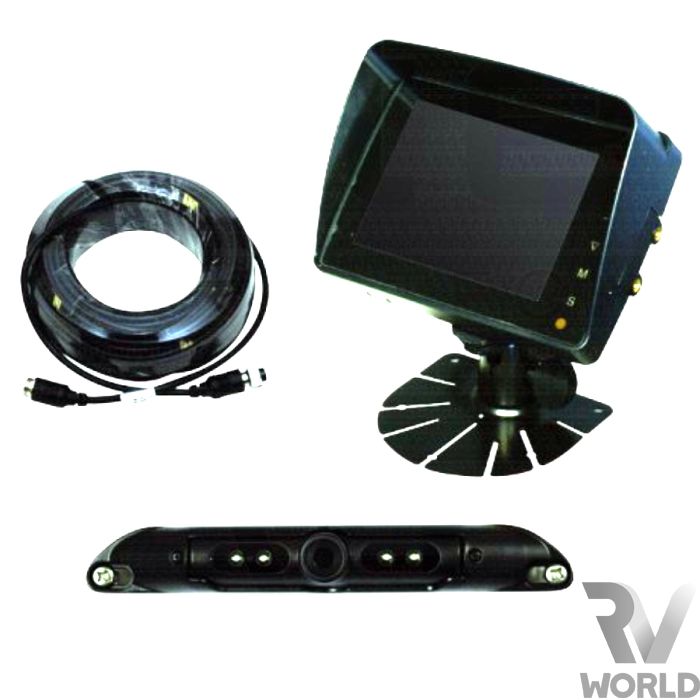

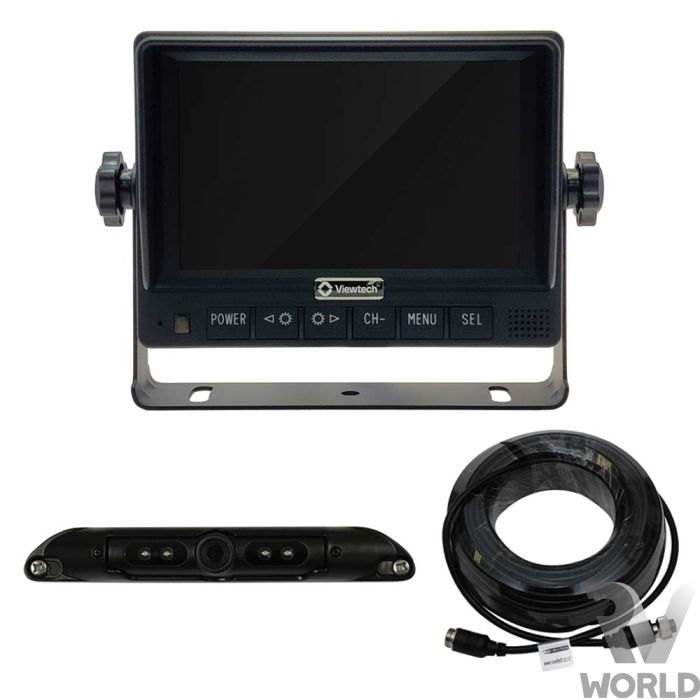

Included In Kit
VT5RV Monitor, VT634 Camera, VT10M 10m
cable, Dash Bracket, U-bracket

More Information
Monitor screen size / type5" TFT LCD Wide angle view
Monitor dimensions (mm) 147W x 109H x 26D
Camera light sensitivity0.0Lux
Camera picture angle160 degrees
Camera dimensions (mm)192W x 28H x 20D
