BMPRO Trek3 Battery Monitor for BM35 Management System
BMPro Trek III Battery Monitor

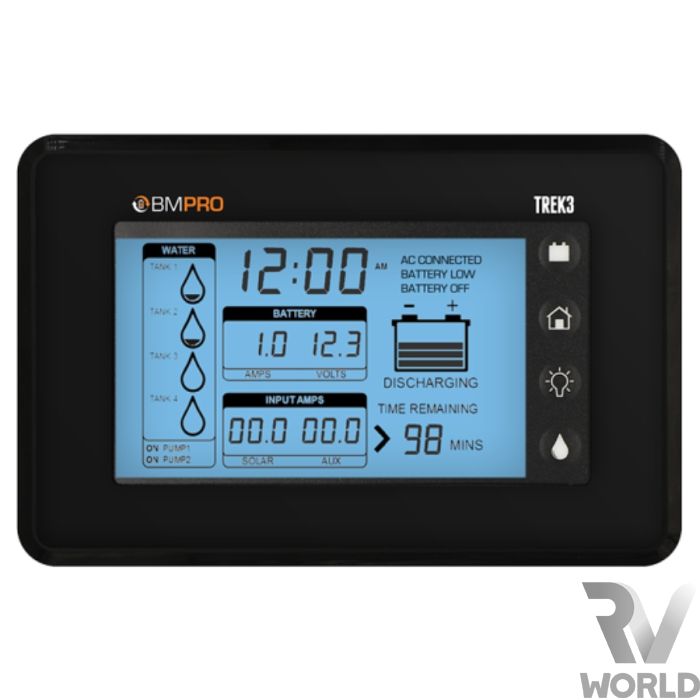

RV battery monitor Trek3 is a smart battery monitor able to learn the actual battery capacity with time and provide more accurate feedback to the user. It combines comprehensive battery data together with water tank level measurement on one screen in a sleek design. Trek3 is designed to work with BatteryPlus35 battery management system. Connected to the BatteryPlus35 via CAN bus, it continuously monitors information, providing vital data at a glance. Trek3 monitors and displays vital battery information such as volts and amps, charge and discharge status, auxiliary and solar currents, as well as remaining battery capacity. It displays information on water tank levels and controls two water pumps with an on/off switch. The user can also quickly and easily isolate the battery from loads with the battery isolate button. The Backlit LCD display of the RV battery monitor looks stylish and is easy to read. One can also use the backlight as a night light. The Trek3 can be connected to the OdysseyLink103 (included in the retail package) to become a part of the Odyssey system. OdysseyLink103 enables SmartConnect Bluetooth sensors and the use of a free Odyssey App to remotely monitor the battery and control caravan’s water pumps from the mobile phone. Trek3 has two mounting options (flush / half recessed).
Features:
Battery voltage and charge status
Battery charging and discharging currents
Auxiliary and solar charging currents
Time remaining to discharge
Level indication of up to 4 water tanks
Time am/pm
Water pump status
Battery on/off status
Backlight can be set as a night light
Control 2 water pumps through BatteryPlus35
Function to disconnect the battery from the load
Includes OdysseyLink103 to enable SmartConnect and free Odyssey app
Specifications:
System Compatibility: BP35 (BMS)
Power Source: BP35 Battery Management System
Input Voltage: 8 - 15VDC
Monitored Battery Capacity: 50Ah to 600Ah
Communication Method: CAN Bus
Smart Connect Ready: Yes
Water Tank Monitoring: Yes
Tank Sender Compatibility: Tank Dipper, Tank Bungs
Clock 12hr or 24hr
Installation: Wall Mount
Operating Temperature: 10°C to 50°C
Dimensions (mm): 164L x 108H x 22D
This monitor will ONLY work with the BMPRO BP35 range of battery management systems.
