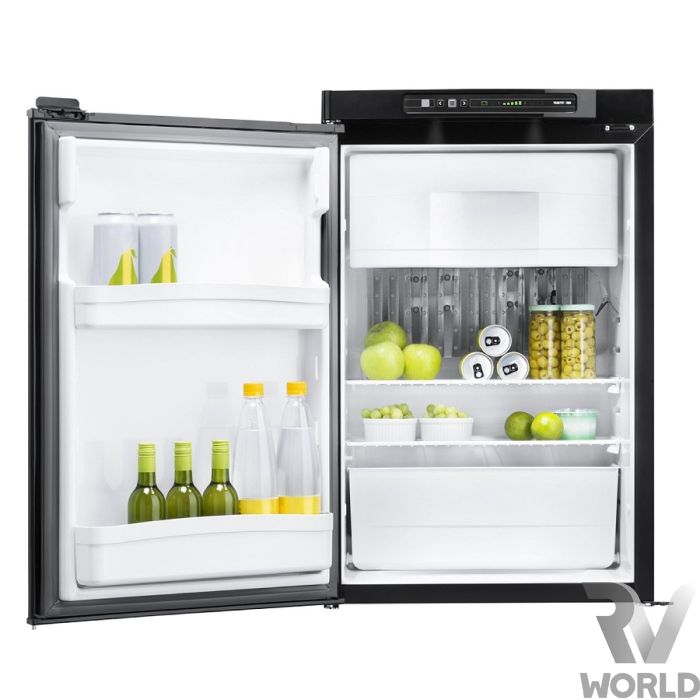

Thetford N4090-E 3 Way Fridge Freezer. 89L 12V/230V/Gas. Wheel Arch Model
Thetford N4090 Caravan and Motorhome Absorption Refrigerator
The Thetford N4090-E is a powerful and spacious 3-Way absorption fridge freezer, specifically designed as a wheel arch model to maximize usable living space in caravans, motorhomes, and campervans. This unit provides the flexibility of operating on three different power sources, ensuring reliable cooling performance wherever your journey takes you.
This compact refrigerator and freezer combination offers an ample total capacity of 89 litres. It features a wheel arch design that allows for convenient, space-saving installation. As an N4000 series "E+" model, it includes automatic energy source selection (AES) for hassle-free operation on 12V, 230V mains, or gas, all controlled via a sleek LED display. The quiet-running absorption technology ensures a peaceful environment within your vehicle.
Features:
Three-way power source: Operates on 12V, 230V, and gas (LPG) with an automatic energy selection (AES) system.
Wheel arch model: Optimized shape to fit conveniently over a wheel arch, enhancing interior space.
LED control panel (E+ model): Provides a simple, clear display and automatic power source management.
Secure closed door: Features a lockable door to keep contents secure during transit.
Flexible interior storage: Includes adjustable door bins, shelving, and a bottle slide.
First-class cooling performance and quiet operation.
Reversible door: Can be easily converted to a left or right-hand hinge for flexible installation.
Durable and eco-friendly: CE mark of quality, CFC-free, and almost entirely recyclable.
Ignition: Electric ignition.
Specifications:
Total volume: 89 Litres
Fridge volume: 78 Litres
Freezer volume: 11 Litres
Refrigeration technology: Single pressure absorption refrigerator
Energy Selection: Automatic (with Manual override)
Max input 12V: 140 W
Max input 230V: 153 W
Energy consumption (AC): 2.9 kWh/24h
Energy consumption (gas): 300 g/24h
Gas Pressure: 30 mbar
Climate class: SN (Operating temperature range: 10°C – 32°C)
Overall dimensions (mm): 821H x 525W x 543D
Net weight: 22.5 kg
Installation must be done by a qualified gas fitter
| Total capacity | 89 |
|---|---|
| Fridge capacity | 78 |
| Freezer capacity | 11 |
| Overall dimensions (mm) | 821H x 525W x 543D |
| Input voltage options | 12V DC, 230AC |
| Average power consumption (avg) | AC: 2.9 kWh/24h |
| Gas consumption | 300 g/24h |
