Suburban 20.3L Water Heater - Gas Only

Suburban SW6DRA Boiler

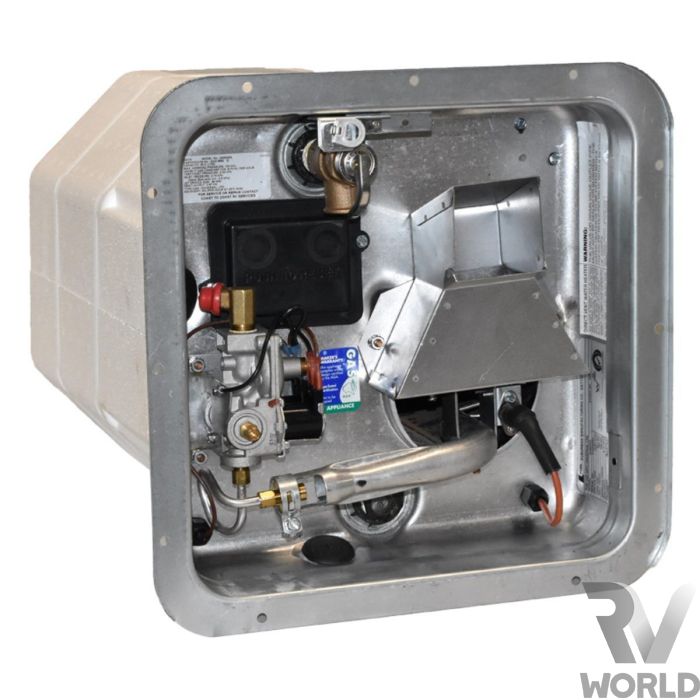

All Suburban Water Heaters are designed for easy installation, operation and maintenance.  The limit switch and reset button are conveniently located in a housing behind the removable outer door.  The combination drain plug/anode rod are also located there, making service a breeze.

Suburban uses a porcelain-lined, steel water heater tank with an anode rod to "absorb" the electrolytic action - just like your water heater at home. The 'sacrificial' anode should be checked yearly. Usually, last approx 2–3 years and then needs replacement.

Features:

Easy installation from outside
Removable outer door for easy access
Recovery rate up to 38L per hour
Longer Life - sacrificial anode
Wall panel switch electronically ignites (via 12V) and controls the water heater

Specifications:

Capacity: 20.3L
Set point temperature: 54°C
Burner Rating: 12,000 BTU (approx) 4kW
Fuel: LPG
Recovery: 40L/hr at 45°C temperature rise
Water inlet: 1/2" BSP female thread
Dimensions (mm): 320H x 320W x 490D (allow an extra 50mm depth for plumbing fittings)
Weight: 15kg
Warranty: 1 year

Please note:
Pump pressure must not be higher than 45 PSI.
Installation must be done by a qualified gas fitter.
