Spinweld Fitting Supply & Install

Rating:
100% of 100
This option must be purchased with a water tank.
$0.00
In stock
Product Code
RV782

Spinweld Fitting Supply & Install

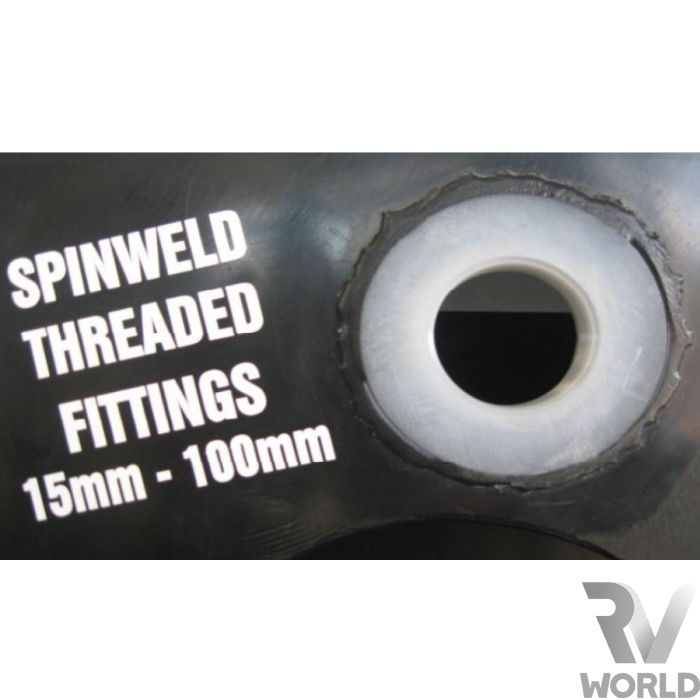

Spinwelding is a unique installation process uses high speed rotation to weld the fitting into the tank. It leaves a clean, strong & flush female BSP thread inserted into the tank. Spinweld fittings are available in a range of different sizes (see below).

15mm   : ½"
20mm   : ¾"
25mm   : 1"
32mm   : 1¼"
40mm   : 1½"
50mm   : 2"
75mm   : 3"
90mm   : 3½"
100mm : 4"

A male threaded fitting will screw into the spinweld, some brands are still sized in imperial so we have included a reference above. E.g. you want a 15mm spinweld fitting installed if you wish to screw in a ½" John Guest male fitting.

Typical threaded fitting installed into Fresh Water Tanks (gravity filled)
Water fill Inlet: 32mm or 40mm
Breather: 20mm
Outlet: 15mm

Typical threaded fitting installed into Grey Water Tanks
Water Inlets: 32mm or 40mm (from basin / sink / shower)
Breather: 20mm
Outlet: 25mm, 32mm or 40mm. For tanks larger than 200L, the valve must be at least 32mm

Typical threaded fitting installed into Black Water Tanks
Breather: 25mm

Please select quantity of spinweld fittings required in the product options (price includes the fitting and installation).

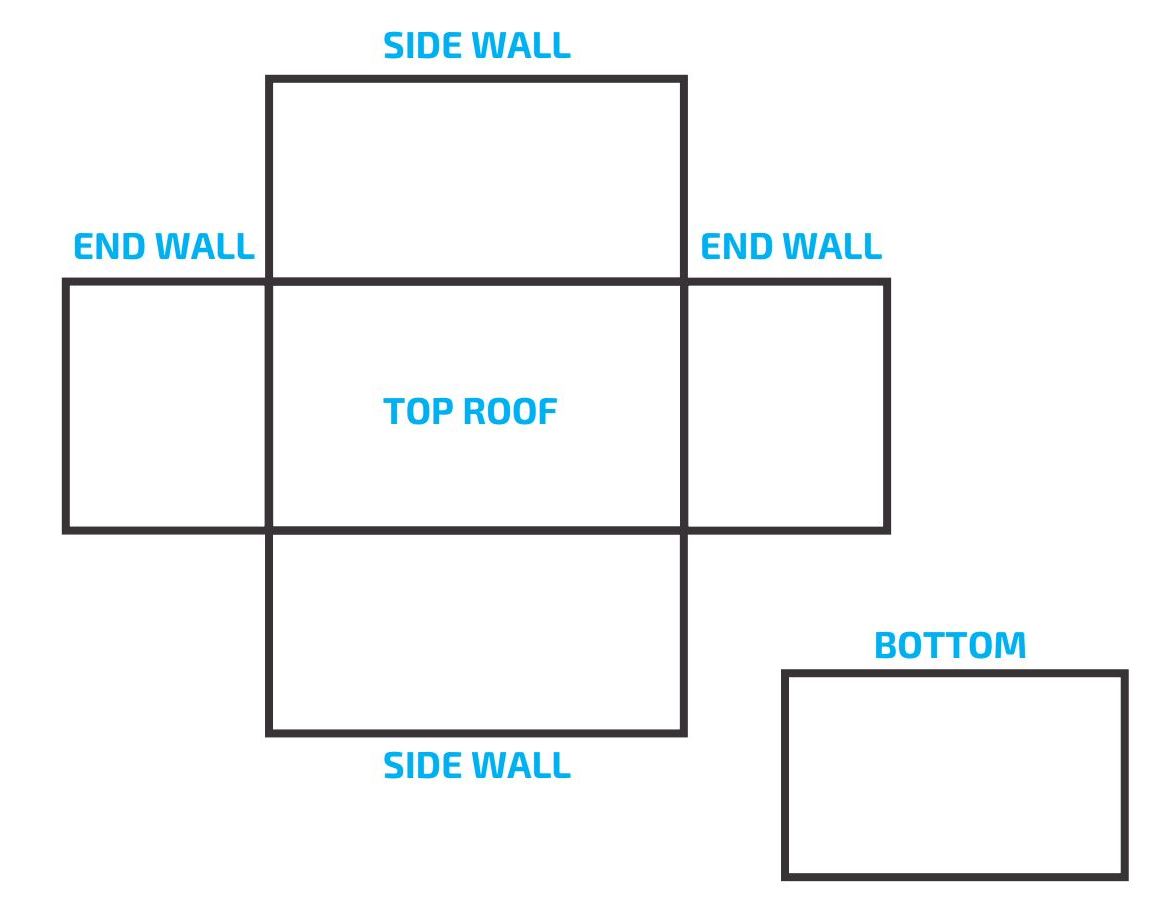

Once your order has been placed, please email us a sketch of the tank indicating fitting size & location where you would like it installed.
