Solar Panel - Sinosolar 100W (12V)

Rating:
100% of 100
An ideal way to charge your batteries with a renewable energy source
Special Price $194.00 Regular Price $225.00
In stock
Product Code
R1453

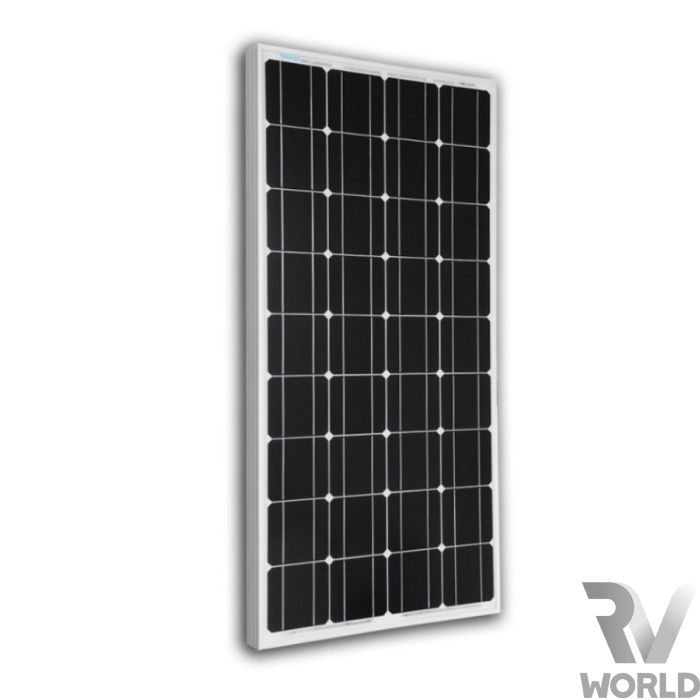

Sinosolar 100W Solar Panel

This Monocrystalline Solar panel is the ideal panel for your leisure vehicle and is perfect for battery charging, caravans, boats, horse trucks, and off grid applications.

Features:

High efficiency Monocrystalline solar cells
Anodised aluminium frame, tempered glass, EVA and TPT to provide support and protection from the severest environmental conditions
Suitable for on/off grid system application
Nominal 12VCD output
Connection: 0.9M (2.5mm) cable with MC4 connector
Module efficiency up to 16% achieved through advanced cell technology and manufacturing capabilities
Excellent performance under low light conditions

Specifications:

Dimensions (mm): 780L x 676W x 35D
Standard Power: 100W
Max. Power Voltage: 20.1V
Max. Power Current: 4.98A
Open Circuit Voltage: 23.7V
Short Circuit Current: 5.63A

Actual panel may vary from image. See technical specs tab for full details.

More Information
Dimensions (mm)780L x 676W x 25D
Maximum power100W
Nominal voltage12V
Short circuit Current5.70A
Open circuit Voltage23.00V
Maximum power voltage18.70V
Maximum power current5.30A
Silicon typeMonocrystalline
