Solar Panel - Daqo 20W (12V)

The Daqo panel is ideal for off-grid and remote power. This high efficiency solar panel is designed for the toughest conditions.

In stock
Product Code
RV264
$49.00

Daqo 20W Solar Panel

High efficiency
Nominal 12V DC for standard output
Outstanding low-light performance
High transparent low-iron, tempered glass
No output cables, termination is made to panel's junction box.

Technical Specs

Maximum power: 17.8V
Nominal voltage: 12V
Tolerance: 0-3W
Short circuit Current: 1.19A
Maximum power current: 1.12A
Open ciruit voltage: 21.88V
Maximum power voltage: 17.8V
Module efficiency:
Silicon type: Polycrystalline
Terminal box: Yes
Maximum system voltage: 1000 VDC
Operating temperature: -40~85C
Dimensions (mm): 350L x 490W x 25D
Weight: 1.58kg

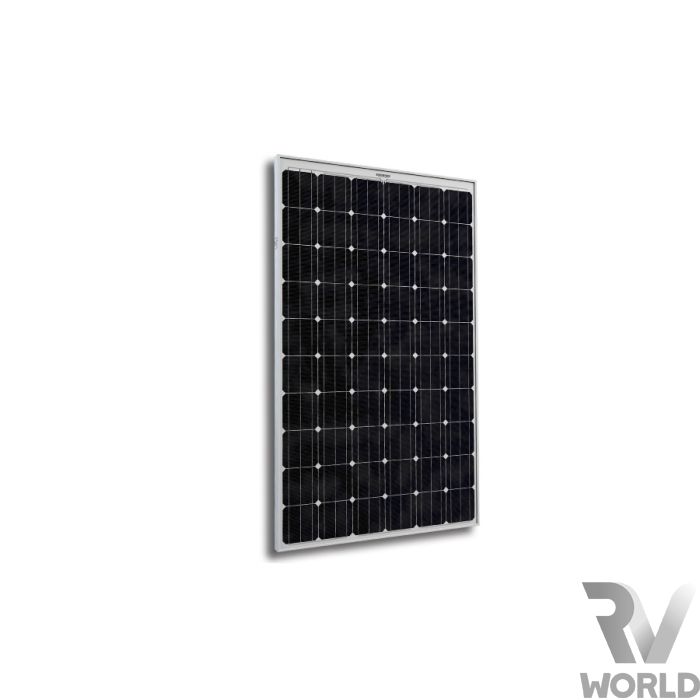

Actual panel may vary slightly from image.

More Information
Weight 1.58kg
Dimensions (mm) 350L x 490W x 25D
Warranty 12 year product warranty
Maximum power 17.8V
Nominal voltage 12V
Tolerance 0-3W
Short circuit Current 1.19A
Open circuit Voltage 21.88V
Maximum power voltage 17.8V
Maximum power current 1.12A
Silicon type Polycrystalline
Terminal box Yes
Maximum system voltage 1000 VDC
Operating temperature -40~85°C
Performance warranty 25 year performance warranty
