Sunmaster 200W Solar Panel (12V)
- Buy 2 for $185.00 each and save 7%

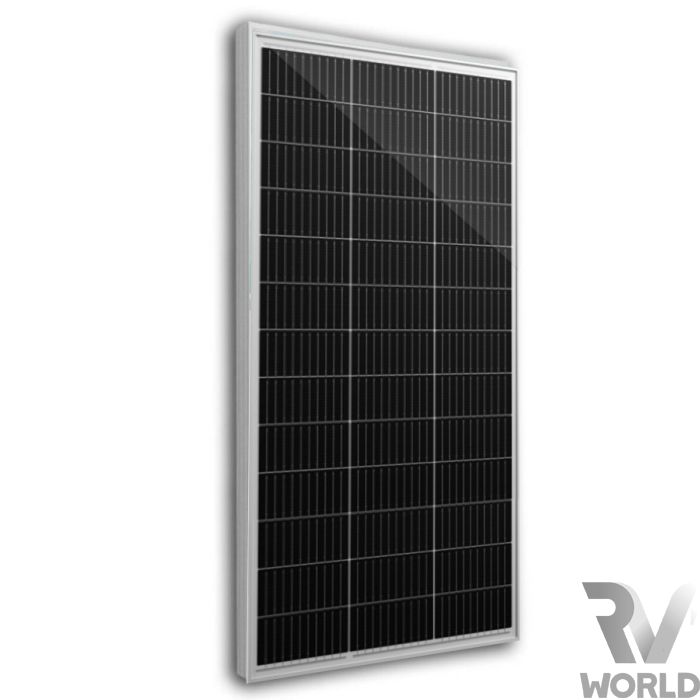

Sunmaster Monocrystalline PV Module SM-200W Solar Panel
The Sunmaster Monocrystalline PV Module SM-200W(39) is a high-performance 200W solar panel designed with innovative half-cell and multi-busbar (MBB) cell technology, achieving a conversion efficiency of up to 21.47%. It is a reliable solution for various solar applications.
The robust aluminum frame and tempered glass front cover are built to withstand harsh environmental conditions.
Features:
High Efficiency: Achieves a high module conversion efficiency of up to 21.47% thanks to an innovative Half-cell design and Multi-busbar (MBB) cell technology.
Low Light Performance: Exhibits excellent performance under low-light conditions and has a low temperature coefficient, making it effective even in high temperatures.
Durability: The robust aluminum frame allows it to withstand wind loads up to 2400Pa and snow loads up to 5400Pa.
Reliability: The module has high reliability against extreme environmental conditions, having passed salt mist, ammonia, and hail tests. It is also resistant to potential induced degradation (PID)
Specifications:
Cell Type: Monocrystalline N type 210 x 105mm
Number of Cells: 39 (3x13)
Dimensions (mm): 1480L x 680W x 30H
Weight: 9.5kg ±5%
Front Cover: Tempered glass
Frame: Anodized aluminum alloy
Junction Box: ≥ IP65
Connector: MC4 or MC4 compatible
Cable: 900mm Length
Nominal Operating Cell Temperature (NOCT): 43∘C ±2 ∘C
Temperature Coefficients of Pmax: −0.36%/∘ C
Temperature Coefficients of Voc: −0.28%/∘ C
Temperature Coefficients of Isc: 0.05%/∘ C
Electrical Characteristics at STC*
Maximum Power (Pmax): 200W
Open Circuit Current (Voc): 24.6V
Short Circuit Current (Isc): 9.95A
Voltage at Maximum Power (Vmp): 20.8V
Current at Maximum Power (Imp): 9.62A
Module Efficiency: 21.47%
Maximum System Voltage: 1000V DC / 1500V DC
Maximum Series Fuse Rating: 10A
Operating Temperature: -40°C to +85°C
*STC (Standard Test Conditions): Irradiance 1000W/m2, Cell temperature 25 ∘C, AM1.5.
| Weight | 9.5kg |
|---|---|
| Dimensions (mm) | 1480L x 680W x 30H |
| Maximum power | 200W |
| Short circuit Current | 9.95A |
| Open circuit Voltage | 24.6V |
| Maximum power voltage | 20.8V |
| Maximum power current | 9.62A |
| Module efficiency | 21.47% |
| Terminal box | ≥ IP65 |
| Maximum system voltage | 1000V DC / 1500V DC |
| Operating temperature | -40°C to +85°C |
