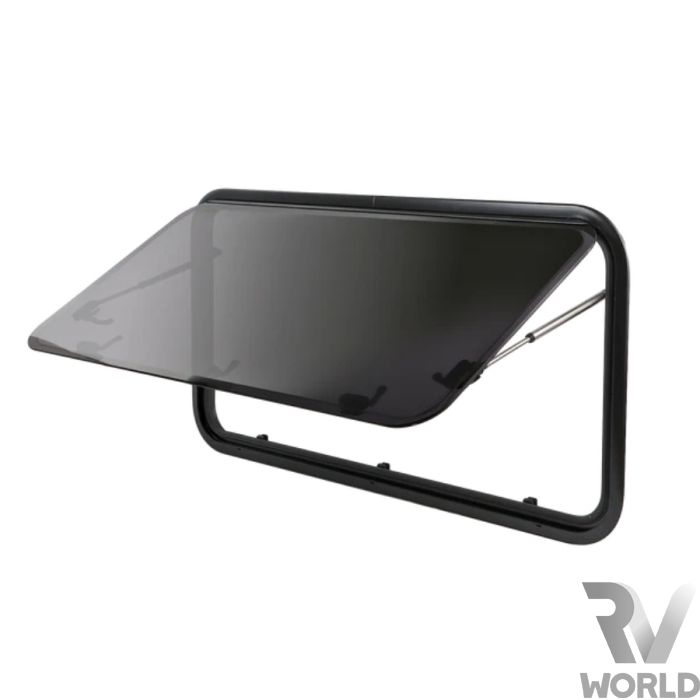

Ranger Double Glazed Window - Aluminium Frame. 1200W x 500H

Ranger Double Glazed Window - Aluminium Frame. 1450W x 550H

A complete window system for motorhomes and caravans. Acrylic double-glazed pane with integrated roller blind and fly net.

Features:

Outer Frame:
Black powder coated aluminium providing outstanding resistance to all weather conditions.

Inner Frame:
White powder coated frame with white roller blind and black flyscreen. Pre-assebled for quick and easy installation.
Blind and fly screen slide very smoothly and are magnetically held together, no need to fiddle with annoying clips.
New tight weave flyscreen to keep out those extra small sandflies and mosquitos.
Excellent privacy.

Acrylic Pane:
Double glazed and UV protected.
Offers excellent thermal insolation and reduced condensation.
Fully adjustable telescopic stays hold open at any position without requiring locking knobs.
Window blade angle opens up to 70 degrees (400H or larger).
Ventilation lock setting.

Specifications:

Cut-out dimensions (mm): 1200W x 500H
External profile dimension (mm): 1226W x 526H x 7D
Internal trim dimensions (mm): 1240W x 540H x 47D
Wall thickness range 30-35mm
Corner radius for cut out hole: R75

Installation:

Simple and quick installation
The outer frame is secured to the wall using a one piece inner clamp ring.
The inner Frame is pre-assembled and screws to the wall over the window once the outer frame has been fitted.
The installation suits wall thickness from 30-35mm (ideally wall thickness is 30mm).
For wall thickness less than this, you will need to make a frame around the installation cut-out hole to build up the wall thickness to 30mm.
