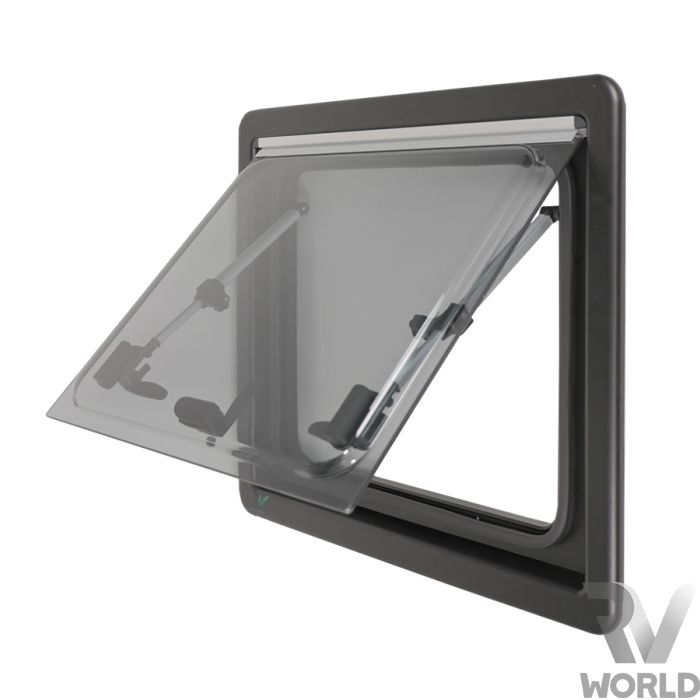

Ranger Double Glazed Window 700W X 400H
700W X 400H Double Glazed Window
The complete window system for motorhomes and caravans. Grey acrylic double glazed pane with integrated roller blind and fly net.
Safety catches and telescopic arms allow easy opening and setting into various positions.
Double glazed acrylic window pane reduces condensation.
Excellent thermal insulation for efficient energy saving.
ASA frame provides outstanding resistance to all weather conditions.
Includes a retractable blind and fly screen. Both slide very smoothly. The blind or fly-screen can be fully closed or they can meet in the middle. They are magnetically held together which is a convenient feature, no need to fiddle with annoying clips.
Simple and quick installation - This is one of the easiest windows we have come across for installation. All mounting hardware/fasteners are included. The outer frame is secured to the inner wall by easy to adjust brackets. The brackets offer added security and a long term seal. The inner trim screws to the outer frame. The installation suits wall thickness from 30-35mm (ideally wall thickness is 30mm). For wall thicknesses less than this, you will need to make a frame around the installation cut-out hole to build up the wall thickness to 30mm.
Cut-out dimensions (mm): 700W x 400H
External profile dimension (mm): 730W x 430H x 26D
Internal trim dimensions (mm): 725W x 425H x 35D
Wall thickness range 30-35mm
Internal Window hole approximately (mm): 600W x 300H
Window Blade approximately (mm): 650W x 340H
|Cut-out dimensions (mm)||700 x 400|
