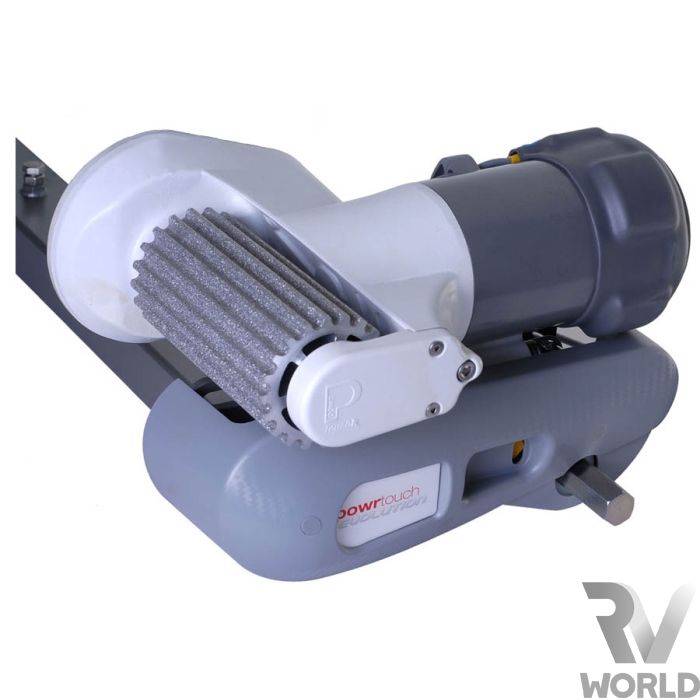

PowrTouch Evolution Manual - Single Axle

Powrtouch Evolution Manual - Single Axle

The Powrtouch Evolution Manual caravan mover offers innovation and value for money, backed with a 2-year warranty. Designed in the Uk, the Evolution features ultra-efficient power train and a state of the art four-pole electric moto with increased functionality.

Moving your caravan is simple and easily controlled by a remote handset. Simply press one of the buttons on the handset to move in any direction and even turn the caravan on its own axis. The caravan tyres are driven by lightweight aluminium rollers provide superb grip and durability. With a soft start feature, you are able to manoeuvre the caravan very accurately before full speed is achieved. Braking is completely automatic and occurs immediately the finger is removed from the selected button.

The Powrtouch Evolution Manual also boasts the FM Electronics System which includes variable speed control. The control system allows the mover to be driven at 100% speed, 75%, 50% or 25% - perfect for even more precise manoeuvring.

Fitting the Powrtouch Evolution to the caravan is very simple, it does NOT require any welding or drilling of the chassis.

Features:

Manual roller engagement with cross actuation
Ultra-efficient power train, high-grip lightweight 70mm dia extruded Aluminium rollers
Centre push design
New state-of-the-art 4-pole electric motor
British design and engineering - COP305 compliant
Designed and manufactured to ISO 9001:2000 & TUV approved
Soft Start - Less stress to the chassis giving complete, fluent control to the operator enabling effortless parking in tight spaces easy connection to towing vehicle
Unique two button safety control to activate system.
Low battery flashing indicator on control box and hand set
Braking occurs immediately your finger is released from the operating buttons
Automatic 20 minute cut off if unit is not in use.
Reverse polarity protected (against incorrect battery connection)
Additional back up lead should you experience interference with radio controlled handset
Easily transferred if caravan is upgraded.
Works on wet or uneven terrain
Palm sized, lightweight, handheld remote controller with holder
Compact design offering better ground clearance.
Easy DIY installation for the competent person
Single piece powder-coated Aluminium casting
Motor overload protection
Advanced safety features built into electronic control box

Specifications:

Designation Powrtouch Evolution Manual
Roller Engagement Manual with cross actuation
Operational Voltage:12 Volt DC
Average Current Consumption: 20 A
Max Current Consumption: 80 A
Speed: 28 cm per sec.
Weight approx: 30kg
Permissible Overall Weight: 2800 kg
POW 15% grad 2300kg
POW 20% grad 2100kg
POW on 25% Gradient 1800 kg
Power Source: 12V 85Ah minimum
Warranty: 2yrs
