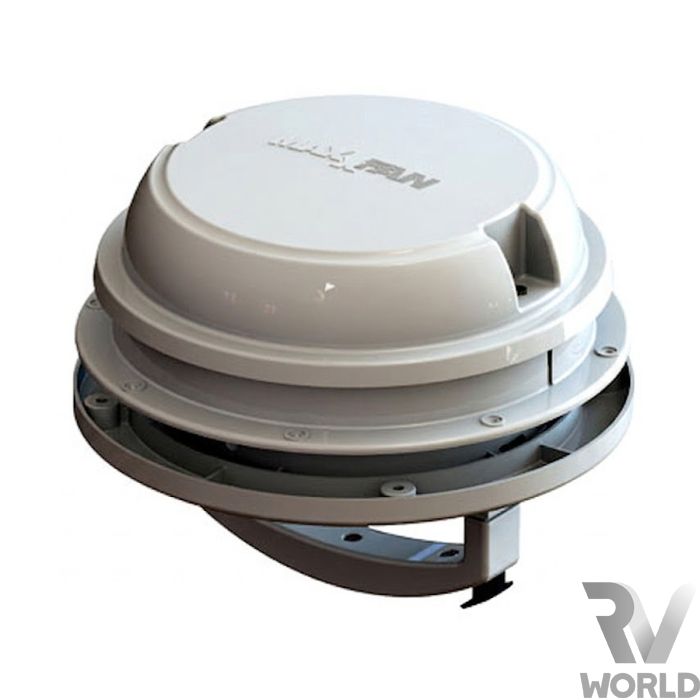

Maxxfan Dome Plus - with LED Lighting
Maxxfan Dome Plus with LED & Sleeve – White 12V
The Maxxfan Dome Plus is an ultra-compact, 6-inch exhaust-only fan featuring a clean, white manual-lift lid. Purpose-built for tight quarters, this versatile fan can be installed for either rooftop or sidewall ventilation applications.
Operation is incredibly simple thanks to a locking lid mechanism that opens and secures with a single-hand push button.
To keep your interior well-lit, the fan includes a built-in LED light base.
It comes standard with a matching white fan guard that acts as a permanent rain shield to protect your living space from weather and debris, while also preventing accidental contact with the spinning fan blades.
Features:
Versatile Mounting: Designed to accommodate both rooftop and sidewall ventilation applications.
Integrated LED Lighting: Built-in LED lights provide illumination directly from the fan base.
Single-Hand Operation: Features a secure locking lid with an easy-to-use, single-hand push-button mechanism.
Weather & Fan Blade Guard: Features a matching white protective fan guard that acts as a permanent rain cover to block debris while ensuring hands stay safely clear of the blades.
Simple Maintenance: Removable screens make cleaning away dirt and dust a breeze.
Customisable Depth Extension Sleeve: Comes standard with a roof/wall sleeve designed for 1-inch thick installations, which can be modified or extended to fit depths up to 6 inches.
Specifications:
Color: White
Lid Color: White
Cutout Dimensions Required: 6.25"
Fan Size: 6" fan blade diameter
Voltage: 12V
Airflow Direction: Exhaust Only
Fan Speeds: 1
Controls: Controls located at the ceiling
Built-In Rain Cover: Yes
Rain Sensor: No
Electric Opening Lid: No
Thermostat: No
Remote Control: No
Optional Wall Controls: No
| Cut-out dimensions (mm) | 158 |
|---|
