MaxxAir Maxxfan Plus Vent. Fan, Manual Lift & Thermostat - White Lid (360 x 360)

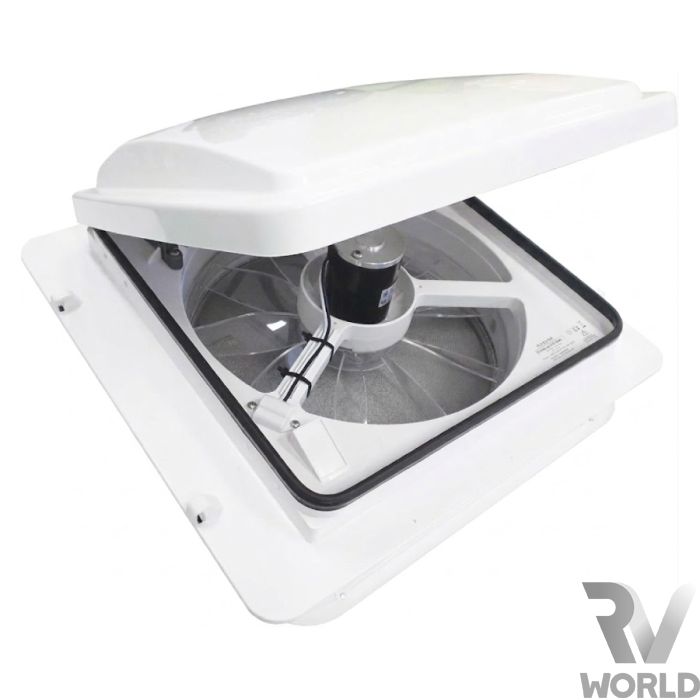

MaxxFan Plus with Thermostat & Manual Lift
Whether you’re looking to exhaust stale air or pull in a fresh breeze, the MaxxFan Plus offers a reliable, independent ventilation system that keeps your living space climate-controlled and comfortable.
The MaxxFan Plus is engineered for durability and ease of use, featuring a powerful 10-speed 12V motor capable of moving over 900 CFM (Cubic Feet per Minute).
Its unique design allows it to function even when the lid is closed—simply engage "Ceiling Fan Mode" to circulate air inside your vehicle without exposing the interior to the elements.
The manual lift mechanism is supported by twin lifting arms, which provide superior stability and eliminate lid fluttering or vibrations during high winds or while driving. Controlled via an intuitive, flush-mount ceiling keypad, you can easily adjust fan speed, switch between intake and exhaust modes, or set the built-in thermostat to maintain your desired temperature automatically.
Features:
10-Speed Reversible Fan: High-powered motor with 10 speeds for both intake (bringing fresh air in) and exhaust (removing odors and heat).
Ceiling Fan Mode: Allows the fan to run while the lid is closed, providing internal air circulation in any weather.
Integrated Thermostat: Automatically controls the fan to maintain a consistent, comfortable temperature inside your RV.
Easy Maintenance: Features a removable flyscreen—simply twist the L-clamps to remove it for quick and easy cleaning.
Twin Lifting Arms: Heavy-duty arms ensure the lid stays secure and vibration-free when open, even in windy conditions.
Tool-Free Compatibility: Includes waterproof moulded mounting tabs for the quick, tool-free installation of a FANMATE™ vent cover (sold separately).
Low Profile Design: Sleek exterior appearance that fits seamlessly with the roofline of modern RVs.
Specifications:
Fan Speeds: 10 Speeds (Intake and Exhaust)
Airflow: Over 900 CFM
Roof Opening Size: Fits standard 14” x 14” (356mm x 356mm) openings
Roof Thickness: 50mm (minimum) to 110mm (maximum)
Dimensions - Closed (mm): 461L x 420W x 97H
Dimensions – Open (mm): 461L x 420W x 311H
Weight: 4.1kg (Installed)
Power Consumption (High): 2.6 Amps
Power Consumption (Low): 0.17 Amps
Lid Type: Manual Lift
Voltage: 12V DC
Control Type: Flush-mount ceiling keypad
| Weight | 4.1Kg |
|---|---|
| Cut-out dimensions (mm) | 360 x 360 |
| Outside dimensions (mm) | 461L x 420W |
