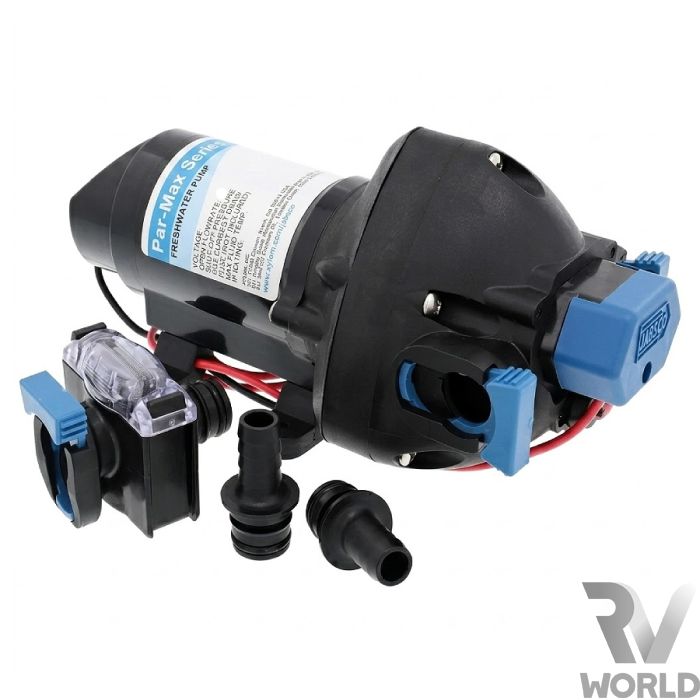

Jabsco Par-Max Pump - 11L/min, 25 PSI
Jabsco Par-Max Water Pressure System Pump 11 LPM/25 PSI
The Jabsco Par-Max delivers an efficient flow rate of up to 11 litres per minute at a maximum pressure of 25 PSI, making it ideal for systems servicing up to two or three outlets such as sinks, showers, and light-duty onboard fixtures.
Built around a durable multi-chamber diaphragm design, it utilises an integrated bypass module that significantly reduces pump cycling and eliminates the sudden pressure drops typically managed by bulky accumulator tanks.
Operation is completely automated via a built-in, sealed pressure switch that triggers the pump immediately when a tap is opened and shuts it down once the tap is closed. With heavy-duty marine-grade construction, a thermal-overload-protected motor, and the capability to safely run dry without sustaining damage, this pump is optimised for harsh environments and long-term deployment.
Features:
On-Demand Automation: An Integrated, sealed pressure switch automatically controls pump activation when fixtures are opened and closed.
Smoother, Quieter Flow: Internal bypass feature reduces rapid cycling, eliminates pulsation, and minimises the need for an external accumulator tank.
Run-Dry Protection: The Diaphragm mechanism can safely run dry without causing damage to the pump’s internal components.
Self-Priming: A Powerful design provides up to 3 metres of vertical dry prime lift for versatile installation options.
Thermal Protection: The Enclosed motor is safeguarded by an automatic thermal overload cut-out to prevent overheating.
Easy Installation: Features quick-connect ports for rapid installation, maintenance, and system configurations.
Vibration Dampening: Equipped with soft noise-absorbing rubber mounting feet to maintain quiet operation.
Specifications:
Open Flow Rate: 11 Litres Per Minute
Pressure Switch Cut-Off: 25 PSI
Pressure Switch Cut-In: 15 PSI
Max Operating Pressure: 25 PSI
Max Inlet Pressure: 30 PSI
Self-Priming Capability: Self-Priming up to 1.8m
Fluid Temperature Range: 0°C to 60°C
Nominal Voltage Options: 12V DC or 24V DC configurations
Max Current Draw: 6A
Duty Cycle: Intermittent
Port Connections: Quick-connect fittings supplied with 2 x 1/2" (13 mm) straight hose barbs
Strainer: Inline, quick-connect 40 mesh strainer included
IP Rating: IPX6
Pump Dimensions (mm): 231L x 108W x 106H
Pump Weight: 2.8 kg
Certifications: CE, RCM, ISO 8846 Ignition Protected
Recommended Fuse Size: 10A for 12V (not included)
| Voltage | 12V |
|---|---|
| Current draw | 6A |
| Water pressure rating | 25 PSI |
| Flow rate | 11L/m |
