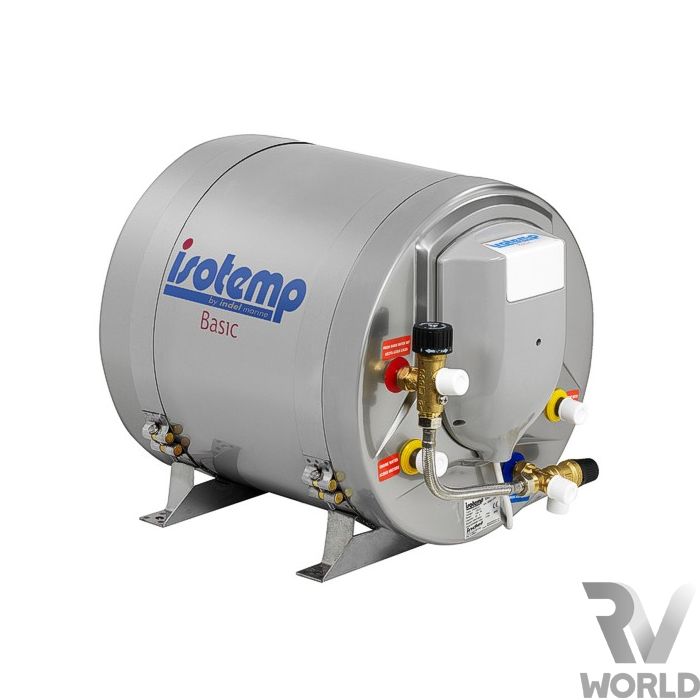

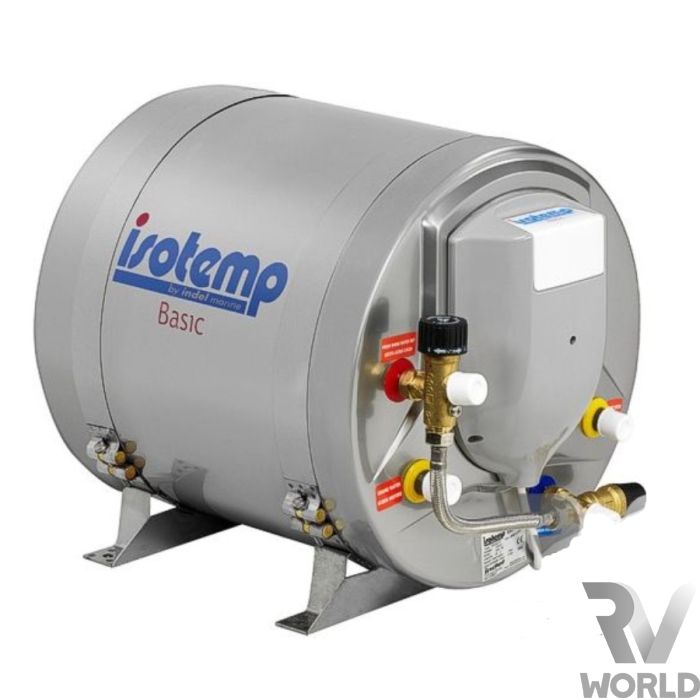

Isotemp Water Heater - Basic 24L 230V/Heat Exchange

The Isotemp Basic 24 water heater is specifically designed for use in motorhomes & boats. Water can be heated via a 230V element or an internal heat exchange coil (using engine hot water). This marine grade water heater is made out of the highest quality materials.

$1,395.00
In stock
Product Code
RV435
You save $60 - $120

Basic 24 Water Heater

The Isotemp water heater comes with brushed stainless steel cover as well as innovative internal design.
It achieves highest capacity by optimized installation of the engine water heat exchanger as well as the immersion heater.

On the hot water outlet, the thermostat mixing valve (also called a temping valve) will mix cold water with the hot output water to reduce the temperature to a safe level. This temperature is pre-set at 55 deg C but can be easily adjusted with a knob on the side of the water heater. The 230V electric element it designed to keep the internal cylinder water at 70degC. If you are circulating the engine water (which can be around 92degC) through the heat exchange coils, the cylinder water temperature can get up to 85degC.

Features:

Extra long, corrugated coils for high heat exchange efficiency.
100 PSI safety valve.
Simple winterising drain.
Ultra-thick insulation for low temperature loss.
Plug & play electrical connection.
Immersion heating element also designed to heat the water at the bottom of the tank.
Built in thermostat mixing valve.

Specifications:

Weight:    14kg
Dimensions (mm): 470L x 395 diameter
Warranty:    2 years
Heat supply: 230V element (750W) and water heat exchange
Capacity: 24L

Construction Material:

Tank, engine water coil & all connections - AISI 316 (corrosion resistant stainless steel)
Outside cover and mounting feet - AISI 304 (stainless steel)
Electric immersion heater - Copper covered by Nickel
Insulation - Polyurethane
Water connections - 1/2” thread

More Information
Weight14kg
Dimensions (mm)470L x 395 diameter
Warranty2 years
Heat supply230V element (750W) and water heat exchange
Capacity24L
