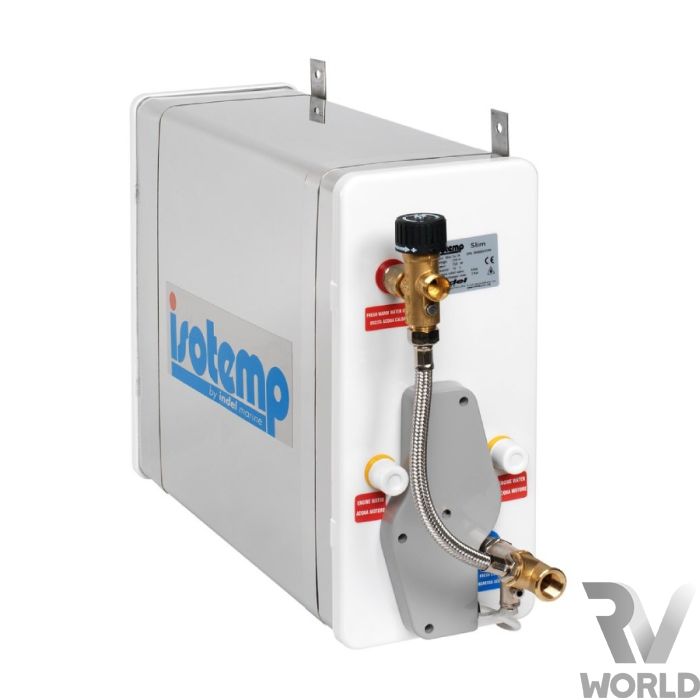

Isotemp Water Heater - Slim Square 16L 230V/Heat Exchange
The Isotemp Square 16 water heater is specifically designed for use in motorhomes & boats. Water can be heated via a 230V element or an engine water heat exchange. This 'marine grade' water heater is made out of the highest quality materials.
Square 16 Water Heater
The Isotemp water heater comes with brushed stainless steel cover as well as innovative internal design.
It achieves highest capacity by optimized installation of the engine water heat exchanger as well as the immersion heating element 230v/750w (included).
Features:
Extra long, corrugated coils for high heat exchange efficiency.
80 PSI safety valve.
Simple winterising drain.
Ultra-thick insulation for lowest temperature loss.
Plug & play electrical connection.
Immersion heating element also designed to heat the water at the bottom of the tank.
Built in thermostat mixing valve
On the hot water outlet, the thermostat mixing valve (also called a temping valve) will mix cold water with hot water to reduce the temperature to a safe level. This temperature is preset at 55 degC but can be easily adjusted with a knob mounted on the side of the water heater. The electric element it set to keep the water in the cylinder to 70degC. If you are using the engine water (which can be around 92degC) for heating, the cylinder water temperature can get up to 85degC.
Specifications:
Volume: 16L
Dimensions (mm): 400 x 180 x 560
Weight: 16kg
Max pressure: 80PSI
Voltage: 230V / 750W
Warranty: 2 year
Constructions Material:
Tank - engine water coil and all connections AISI 316 (corrosion resistant stainless steel)
Outside cover and mounting feet - AISI 304 (stainless steel)
Electric immersion heater - Copper covered by Nickel
Insulation - Polyurethane
Water connections - 1/2” thread
| Weight | 16kg |
|---|---|
| Dimensions (mm) | 400 x 180 x 560 |
| Warranty | 2 years |
| Heat supply | 230V element / engine water heat exchange |
| Capacity | 16L |
