Dometic RUC6508X Fridge Freezer. 188L 12V/24V/230V

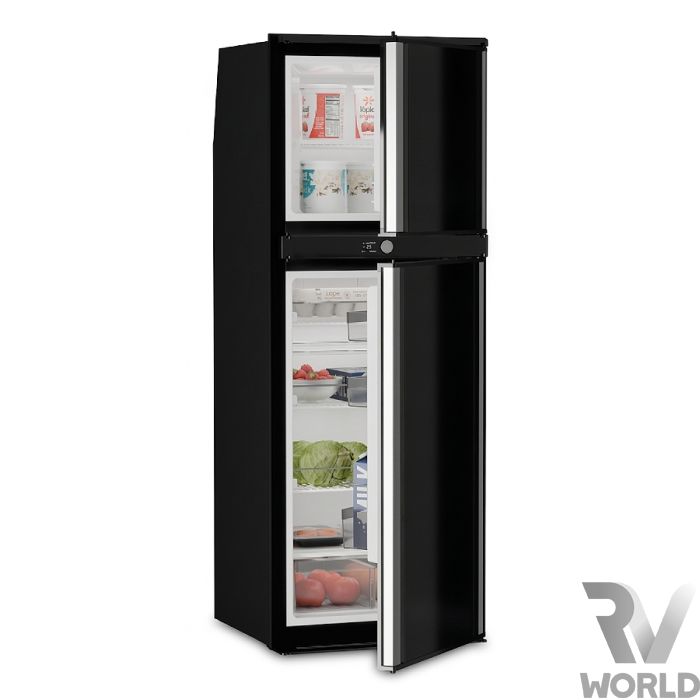

The Dometic RUC6508X model is an upright compressor refrigerator that features a narrow cabinet design without compromising on storage volume.
Dometic RUC 6508X Fridge Freezer 188L
The Dometic RUC6508XL stands as a premium evolution in the compressor refrigerator market, specifically engineered to maximize storage in the narrow cabinetry common to modern RVs. Its most significant upgrade is the patented double-hinged door, which allows the unit to be opened from both the left and right sides without needing to reconfigure any hardware. This flexibility, paired with a slim 550mm width, makes it an ideal solution for tight floor plans where accessibility from both the kitchen galley and the lounge area is a major convenience.
Beyond its physical versatility, the RUC6508XL introduces an enhanced TFT color display with a sleek rotary controller, offering more intuitive climate management than its predecessors. The interior has also seen refinement, featuring a humidity-controlled crisper drawer and a redesigned airflow system to ensure consistent "tropical-rated" cooling performance even in extreme ambient temperatures. By combining a generous 188L capacity with these smart hardware improvements, the 6508XL offers a more seamless, user-centric experience for long-haul travellers.
Features:
Narrow cabinet design with a slim footprint, meaning this can easily fit through your RV door
Tropical-rated cooling systems ensure excellent cooling performance in all conditions
Full-width crisper with humidity control for fruit and vegetables
Automatic switching from DC to AC power when AC mains is available
Easy-to-use control panel with colour TFT display
Adjustable shelves and wire doors
Generous gross capacity of 188L
Specifications:
Input voltage (AC): 230-240V
Input voltage (DC): 12V/24V
Average power consumption: 40W/hr or 950W/day (ambient temp 32°C, fridge set point at 3°C)
Weight: 43kg
Gross volume: 188L
Fridge storage volume: 134L
Freezer storage volume: 46L
Dimensions (mm): 550W x 1447H x 677D, including flange
Recess Dimensions (mm): 530-535W x 1437-1442H x 621D
(The fridge must be installed in a recess so that it stands secure when the vehicle is in motion).
Installation Notes:
Ventilation is required; please see the installation manual for more information.
Delivered with doors hinging on the LEFT-hand side. Comes with a door hinge reversal kit should you want to swap to door hinging to the right side.
| Total capacity | 188L |
|---|---|
| Fridge capacity | 134L |
| Freezer capacity | 46L |
| Overall dimensions (mm) | 550W x 1447H x 677D |
| Recess required (mm) | 530-535W x 1437-1442H x 621D |
| Input voltage options | 12V/24V/240V |
| Average power consumption (avg) | 40W/hr or 950W/day (with ambient temp 32 degC & fridge set-point a 3 degC) |
| Weight | 43kg |
