Dometic RUA6508XL 3 Way Fridge Freezer. 188L 12V/230V/Gas
The Dometic RUA 6508X is a premium absorption refrigerator designed specifically for the RV market.
Part of the innovative RUA series, this model combines a slim footprint with high-capacity storage, making it an ideal choice for travelers who require reliable refrigeration in various environmental conditions.

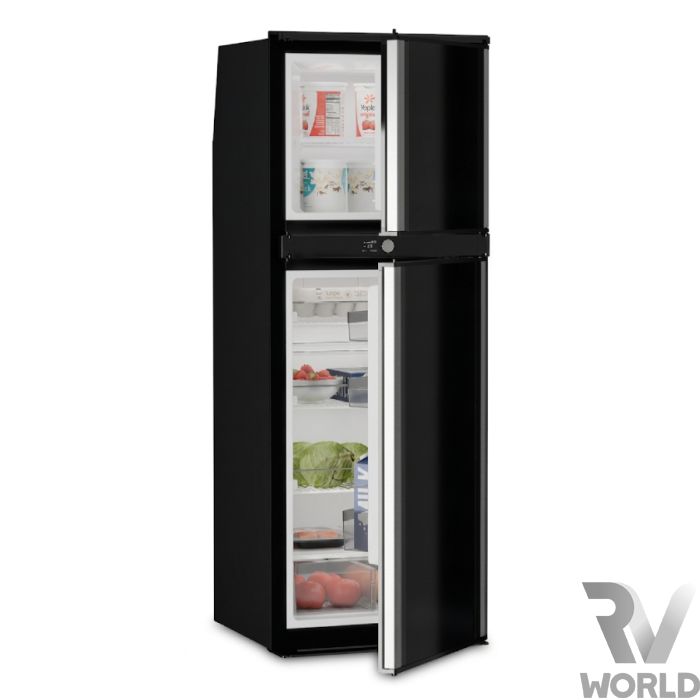

Dometic RUA 6508X Absorption Refrigerator
Whether you are parked at a powered site or off-grid, the RUA 6508X provides the flexibility and performance expected from a leader in mobile living solutions.
The RUA 6508X is a large-format 180 L absorption refrigerator that offers the unique versatility of a double-hinged door.
This patented design allows users to open the fridge and freezer from both the left and right sides without needing to re-install the hinges, providing unprecedented access in tight RV layouts.
Utilizing R717 (Ammonia) refrigerant, this absorption unit is capable of running on multiple power sources, including 12/24 V DC and 100-240 V AC, featuring an automatic switch function between DC and AC power for seamless operation.
Its T-rated cooling system is engineered to maintain excellent performance even in harsh, high-ambient temperatures.
Features:
Double Hinge Design: Provides the convenience of opening the door from either the left or right at any time.
Intuitive Control: Features a built-in control panel with a color TFT display and a unique rotary touch control for easy temperature and mode selection.
Flexible Storage: Includes adjustable shelves, door bins perfect for bottles and cans, and a full-width crisper with humidity control.
Efficient Lighting: Elegant internal LED lighting illuminates the entire cabin for better visibility.
Versatile Cooling: A dedicated freezer compartment with an internal door maintains temperatures between -5 °C and -15 °C.
Slim Footprint: The narrow cabinet design allows it to fit into modern RV interiors without sacrificing significant floor space.
Specifications:
Refrigeration Technology: Absorption
Total Volume: 180L
Freezer Volume 46L
Input Voltage12/24 V DC; 100-240 V AC
Power Consumption: 6.6 kWh/24h (539 Ah/24h) at 25°C ambient
Gas consumption: 500g/24h
Fridge Temp Range: 0°C to 12°C
Freezer Temp Range: -15°C to -5°C
Dimensions (mm): 550W x 667D x 1451H
Net Weight: 66 kg
Warranty: 3 Years
Installation Notes
Please consult the installation manual found in the 'Downloads' Tab. The below item(s) are required for a brand new installation. If you are replacing an existing 3-way gas fridge and already have adequate ventilation in place, not all the parts may be required. These accessories can be selected above before adding the fridge to your cart.
- Flue kit
- [2 X Large Wall Vents] or [Large Wall Vent + Fridge Roof Vent]
Installation must be done by a qualified gas fitter
| Total capacity | 180L |
|---|---|
| Freezer capacity | 46L |
| Overall dimensions (mm) | 550W x 1451H x 667D |
| Input voltage options | 12/230V |
| Gas consumption | 500g/24h |
| Weight | 66kg |
