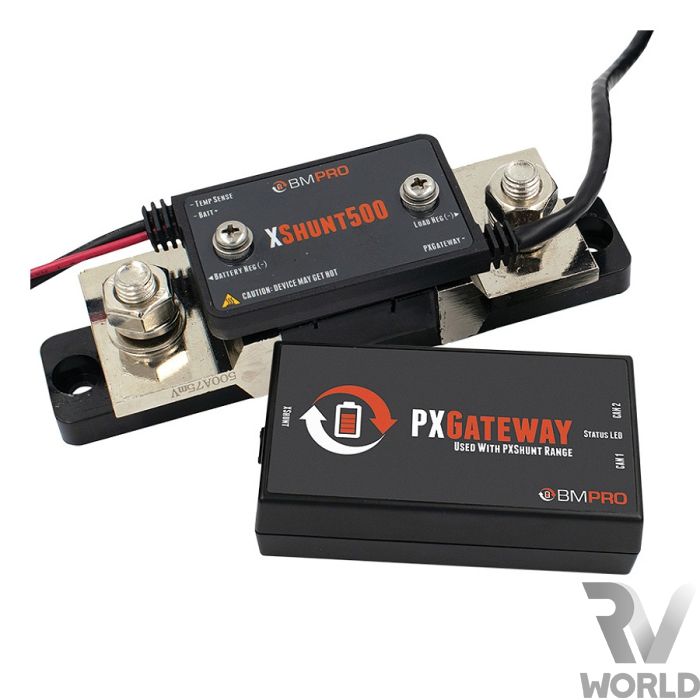

BMPRO PXShunt500 + PXGateway
BMPRO PX Shunt 500 and PX Gateway
The PXShunt500 provides wired battery monitoring for high current BMPRO power management systems.
Made up of two components, the XShunt500 and the PXGateway, adding the PXShunt500 to a BMPRO power management system allows high current loads to be directly connected to the battery while maintaining accurate State of Charge and Time Remaining measurements.
The PXShunt500 also provides your BatteryPlus35, ASPero and J35 with additional information on battery usage so your displays such as the Odyssey, Trek, JControl and JHub are always up-to-date on battery Time Remaining and State of Charge.
The PXShunt500 communicates via a CAN bus cable, is designed for 12V batteries up to 1200AH in capacity, features easy to read LED status indicators and is rated for 500A of continuous current.
Features:
High-Precision Current Measurement: Accurately measures current flow up to 500A, providing real-time data on your power usage and charging.
Integrated Temperature Sensor: Monitors battery temperature to prevent overheating and optimize charging parameters, extending battery life.
Bluetooth Connectivity: Connects wirelessly to compatible BMPRO devices (e.g., JAYCOMMAND, Odyssey, etc.) for convenient data display and management via the BMPRO app.
Robust & Durable Design: Built to withstand the harsh conditions of RV travel, ensuring reliable performance for years to come.
Easy Integration: Designed for straightforward installation into your existing 12V or 24V RV electrical system.
Essential for Lithium Batteries: Provides the precise monitoring crucial for managing lithium (LiFePO4) battery systems, ensuring they operate within their optimal parameters.
Compact Footprint: Space-saving design allows for flexible mounting options in various RV layouts.
Specifications:
Model: PXSHUNT 500
Input Voltage (DC): 8V – 16V
Continuous Current Rating: 500A
Current Measurement Resolution: <200mA
Peak Current Rating: 700A (for 10 seconds)
Quiescent Current Draw: < 5mA
Communication: Bluetooth LE (Low Energy)
Communication Method: Hard Wired | CAN Bus
Operating Temperature: -10°C to +50°C
Storage Temperature: -40°C to +85°C
Humidity: 95% RH @ 55°C (non-condensing)
Dimensions - PXSHUNT500 (mm): 156 x 46 x 47.5
Dimensions - PXGateway (mm): 90 x 52 x 24mm
Weight: XShunt500: 1kg
Weight: PXGateway: 150g
Compatibility: Designed for use with BMPRO power management systems and compatible Bluetooth-enabled displays/apps.
