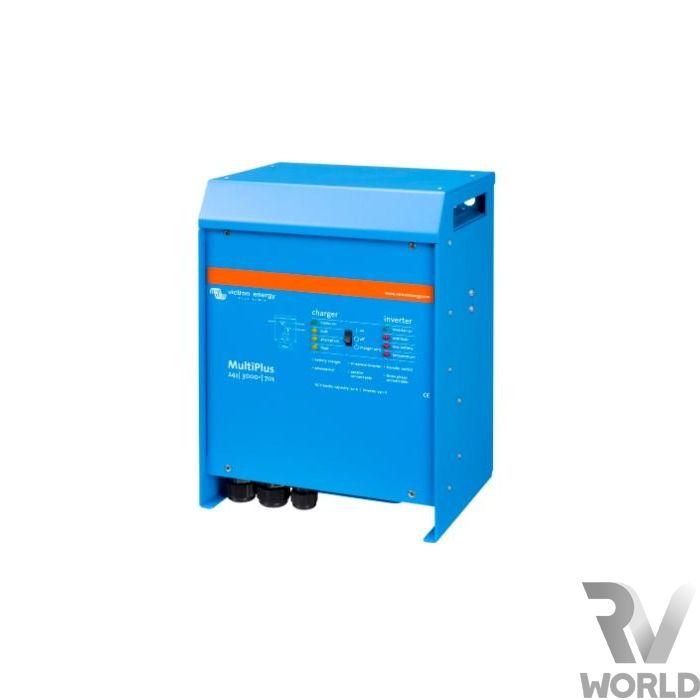

3000W Pure Sine Wave Inverter/Charger. Victron Multiplus 3000

The Victron MultiPlus is a powerful pure sine wave inverter, a sophisticated multistage battery charger and a high-speed AC transfer switch in a single compact enclosure. Victron Multiplus is renowned for unbeatable quality and market-leading features. Designed for marine, motorhome & off grid use.

Special Price $3,350.00 Regular Price $3,755.00
In stock
Product Code
RV400
You save $20 - $40

Victron 3000W Multiplus

The Victron MultiPlus is a powerful pure sine wave inverter, a sophisticated multistage battery charger and a high-speed AC transfer switch in a single compact enclosure. Victron Multiplus is renowned for unbeatable quality and market-leading features. Designed for marine, motorhome & off grid use.

Two AC Outputs

The high speed AC transfer switch ensures continuous AC output with no interruptions. If shore/generator power is disconnected (in the event of a grid failure), the Multiplus takes over the power supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Virtually unlimited power thanks to parallel operation

Up to 6 Multiplus inverter/chargers can operate in parallel to achieve higher power output. For example, six 24/5000/120 units will provide 30 kVA output power with 720 Amps charging capacity.

Three phase capability

In addition to parallel connection, three units of the same model can be configured for three-phase output.

PowerControl - Dealing with limited generator, shore side or grid power

The MultiPlus is a very powerful battery charger. It can draw a lot of current from the generator or shore supply. With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take over supply of other AC loads thus preventing the generator or shore supply from being overloaded.

PowerAssist - Boosting the capacity of shore or generator power

Peak power is often required for only a limited period, the MultiPlus will make sure that if shore/generator power is insufficient, it immediately compensates by using power from the battery. When the load reduces to a more normal level, the spare power is used to recharge the battery.
Example: Using the Honda EU10i with Phoenix MultiPlus 12/1600/70. The Honda EU10i delivers a maximum of 1000W. The MultiPlus 12/1600/70 delivers 1600W. So the total available power is 2600W. You have the possibility to simultaneously use heavy power tools, microwave and other heavy loads. As soon as the power demand reduces and the generator has enough power available to supply the loads by itself, the inverter function is changed for the charger function and the battery is recharged with a maximum of 70 amps.

Adaptive smart charger and dual bank battery charging

The powerful battey charger uses advanced ‘adaptive charge’ software. The software fine-tunes the three stage automatic process to suit the condition of the battery, and adds a forth stage for long periods of float charging. An example of the advanced charging software is the 'variable absorption charging time'. Classic 3-step chargers have a fixed absorption time which can easily overcharge the battery if it is activated often through-out the day. The Multiplus charger will adjust the absorption charging time depending on the recent discharge history. This ensures the battery is not overcharged and increases it's longevity.
The MultiPlus will charge a second battery bank using an independent trickle charge output intended for a main engine or generator starter battery.

Victron Multiplus specs:

Inverter

Voltage options: DC 12V, 24V or 48V
Input voltage range: DC 9.5-17V, 19–33V or 38-66V
Input Power (no load): 15W or 16W
Input Power (search mode): 4W or 5W
Output voltage (AC): 230V ± 2%
Output frequency: 50HZ
Optimum inverter efficiency: 93% - 95%

Charger

Voltage input: AC 187-265V
Charge current house battery: 120A, 70A or 35A
Charge current starter battery: 4A
Charge voltage 'absorption': 14.4V, 28.8V or 57.6V
Charge voltage 'float': 13.8V, 27.6V or 55.2V
Storage mode: 13.2V, 26.4V or 52.8V
Battery temperature sensor

Transfer switch: 16A or 50A option

Protection: Output short circuit, overload, battery voltage too low or too high, over temeprature, input voltage ripple too high, 230V on inverter output

Battery connection: M8 bolts

Additional items available for this inverter: Phoenix Inverter Control Panel

More Information
Weight18kg
Dimensions (mm)362L x 258W x 218D
Warranty2 years
Input voltage options12V, 24V or 48V
Output power (continous)3000W
Output power (surge)6000W
Output waveformPure sine wave
