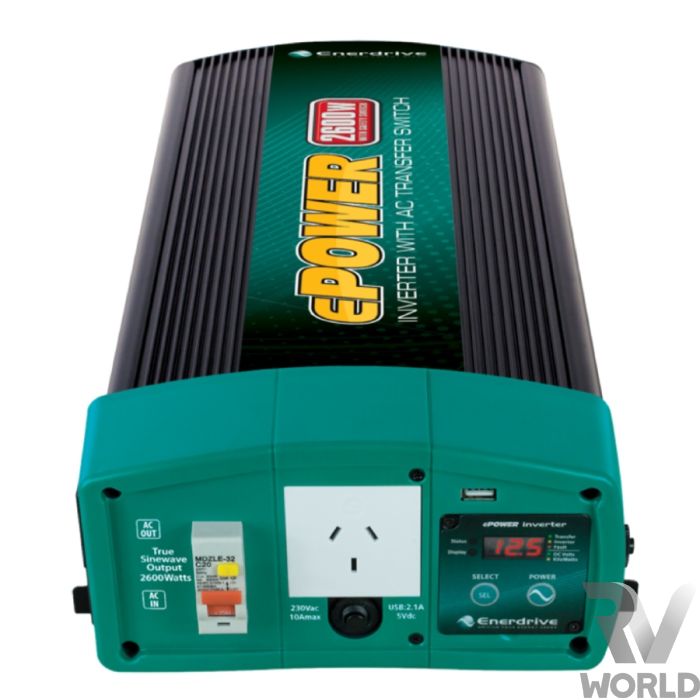

2600W Pure Sine Wave Inverter. Enerdrive ePOWER EN1226S-X
ePOWER 2600W True Sine Wave Inverter with AC Transfer Switch & RCD
The ePOWER 2600W Inverter with AC Transfer & Safety Switch is one in a family of affordable, high quality, professional level inverters by Enerdrive.
By using the latest power conversion technology, ePOWER inverters deliver clean and energy efficient true sine wave AC power from your DC supply.
This ePOWER Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter.
This helps to keep your appliances running with almost no break time on AC transfer and allows for a much simpler installation on-board.
Also included in the unit is a RCD Safety Switch. This switch monitors the flow of electricity through the inverter and detects any problems that may pose a risk to personal safety and switches the output power off within 0.03 of a second.
The ePOWER 2600W is built to operate basic equipment such as power tools, computers, microwave ovens, televisions and other appliances that use up to 2600W of power for operation
Features:
Seamless 16A AC Internal Transfer Switch
AC RCD/Safety Switch with test button
Removable LED Remote Control Display Panel
Regulated Pure Sine Wave Output
Silent Operation
Compact Size for Easy Installation
USB Port for charging USB devices
Specifications:
AC Output Power: 2600W
AC Output Current: 11.3A
AC Output Voltage: 230 Vac / 50 Hz
AC Output Waveform: Sine wave: (<3% THD)
Nominal DC Input Voltage: 12.5 VDC
No Load battery draw: < 1.5A DC
DC Input Voltage operating range: < 1.5A DC
Under Voltage Alarm: 11.0 / 12.1 VDC
Under Voltage Alarm Recovery: 11.3 / 12.3 VDC
Under Voltage Shutdown: 10.5 / 11.8 VDC
Under Voltage Shutdown Recovery: 12.0 / 12.6 VDC
Over Voltage Shutdown: 15.5 VDC
USB Port: 5V, 750mA
AC Transfer Switch
Transfer Time: < 30 ms
Transfer Relay Rating: 16A (resistive load)
AC Input socket IEC-C20: 16A max
AC Output socket IEC-C19: 16A max
AC Output Front GPO: 10A max
EMI / EMC: CE EMC: EN/IEC 62040-2 category C1
Operating Temperature: 0°C to 40°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5-90% non-condensing
Operating Altitude: Up to 3000 meters above sea level
Weight: 7.0kg
Dimensions (mm): 560W x 230L x 115H
Warranty: 3 Year
| Weight | 7kg |
|---|---|
| Dimensions (mm) | 560W x 230L x 115H |
| Warranty | 3 Years |
| Input voltage options | 12V / 230V |
| Input current (no load) | < 1.5A DC |
| Output voltage (AC) | 230V |
| Output frequency | 50Hz |
| Output power (continous) | 2600W |
| Output waveform | Pure Sinewave |
| Battery low alarm | 11.0 / 12.1 VDC |
| Battery low shutdown | 10.5 / 11.8 VDC |
| Battery high shutdown | 15.5 VDC |
