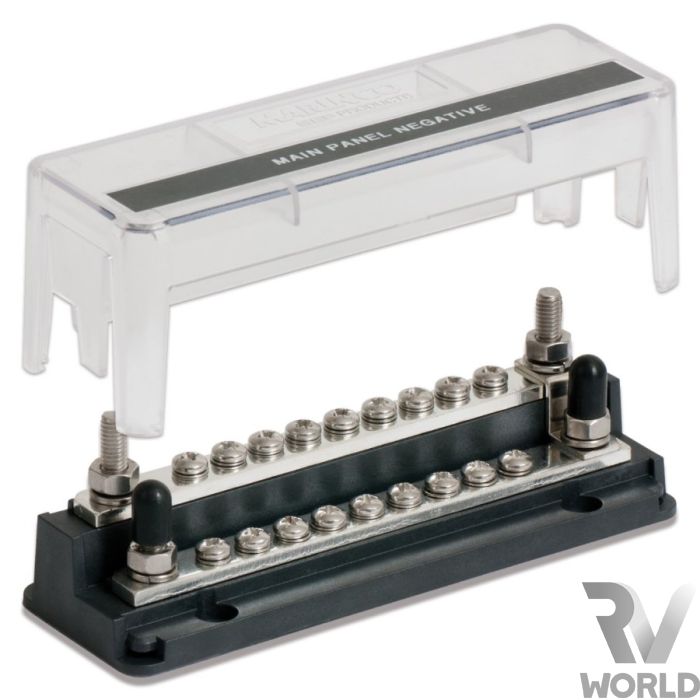

18 Way Z Busbar

Utilise installation space effectively by using the Z busbar. The compact design is made possible by 2 bar rails at different heights.
Product Code: RV900

Availability: In stock

$65.00
Description
Details

10 Way Bus Bar

Quality marine 18 way design busbar with cover.
Removable Z plate allows 2 independent bars of 9 terminals if required.
4 x 6mm studs.
4mm terminals with captive lock washers.
Up to 50VDC.
Rated to 200A per bar.
Stainless steel studs, washers and nuts for extended life in the marine environment.
Dimensions (mm): 147L x 49W x 51H.
