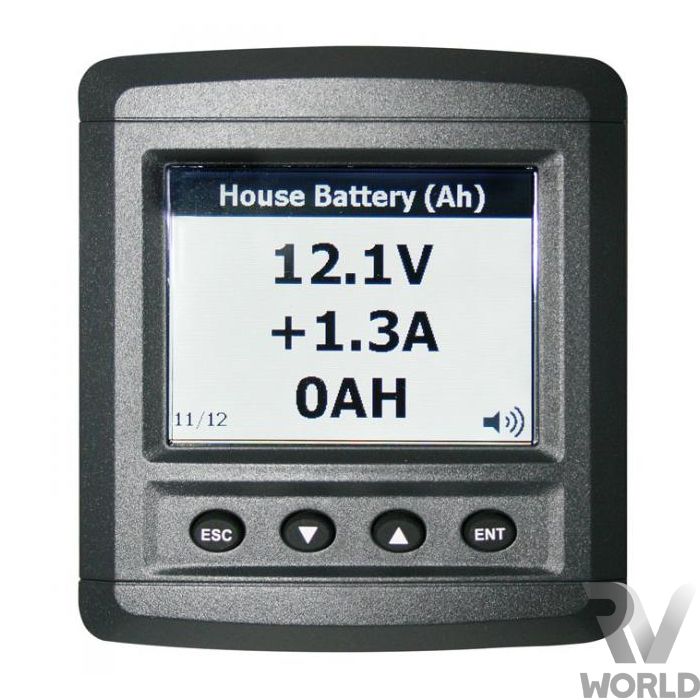

Battery Monitor Specs:

2.8" Colour LCD screen
Input voltage 8-32VDC
Dimensions (mm): 90W x 100H
Backlit keypad

Display info:

Charge/discharge amps for up to two banks
Capacity remaining in A/h and %
Battery condition
Tank fluid level
Circuit status
See sample screen image

Monitor Features:

8 user configurable inputs (voltage, current, tank level)
Programmable high/low audio visual alarms for volts, amps and tank levels
Dimmable screen
Can be panel or surface mounted

Comes with:

1 x Shunt 450A/50 mV shunt
1 X 5m Shunt installation cable

Additional items available for this monitor:

* Ultrasonic Tank Sender

Programmed for your tank dimensions, the new Ultrasonic Tank Sender can be used on fuel (petrol or diesel), fresh water, grey water or black water tanks. The 5 hole mounting pattern allows it to be retro fitted to practically all other sender brands such as Teleflex, Faria, VDO and many other popular instrument brands.

Operating voltage: 10-32V
Current draw: 25mA with 5 volt gauge output
Measurement method: Acoustic sonic measurement
Tank depth: 0 - 2000mm at 2mm accuracy
Mounting: 5 stud mounting pattern with gasket, seal and screws. Top mount only
Opperating temperature: 4 to 65 deg C
Chemical resistance: Petrol, diesel, water, toilet chemicals
Tank type: Linear & non-linear, metal or plastic
Tank sender dimensions (mm): 95L x 85W x 20H

* Shunt & Installation Cable to monitor charge/discharge amps of a second battery bank
