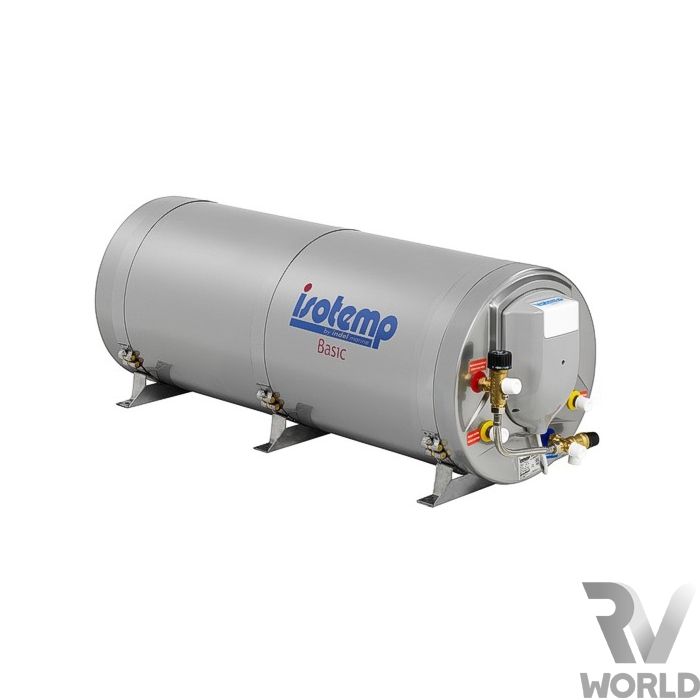

Basic 75 Water Heater Features:

Extra long, corrugated coils for high heat exchange efficiency.
100 PSI safety valve.
Simple winterizing drain.
Ultra-thick insulation for low temperature loss.
Plug & play electrical connection.
Immersion heating element designed to also heat the water at the bottom of the tank.
Built in thermostat mixing valve.

On the hot water outlet, the thermostat mixing valve (also called a temping valve) will mix cold water with the hot output water to reduce the temperature to a safe level. This temperature is preset at 55 degC but can be easily adjusted with a knob on the side of the water heater. The 230V electric element it designed to keep the internal cylinder water at 70degC. If you are circulating the engine water (which can be around 92degC) through the heat exchange coils, the cycliner water temperature can get up to 85degC.

Construction Material:

Tank, engine water coil & all connections - AISI 316 (corrosion resistant stainless steel)
Outside cover and mounting feet - AISI 304 (stainless steel)
Electric immersion heater - Copper covered by Nickel
Insulation - Polyurethane
Water connections - 1/2” thread

Technical Specs:

Volume: 75L
Dimensions (mm): 1050L x 395 diameter
Weight: 29kg
Max pressure: 100PSI
Voltage: 230V (750W)
Warranty: 2 year
