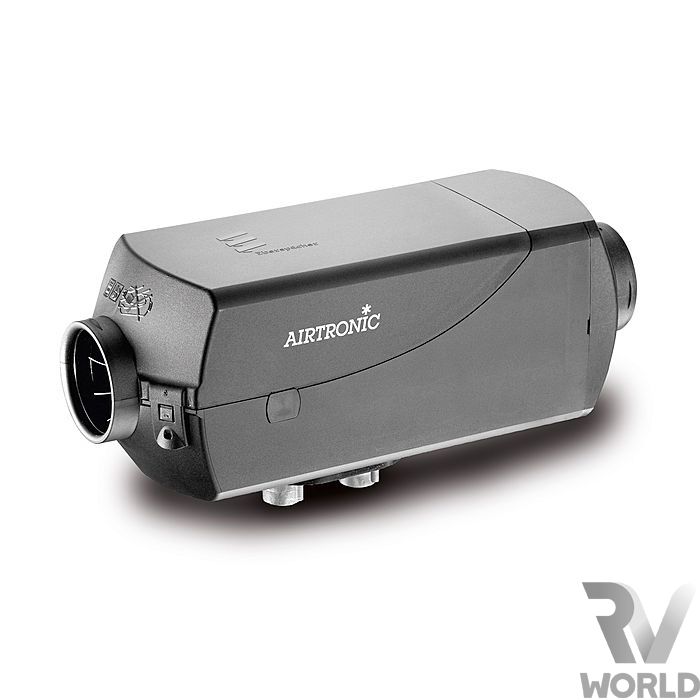

Eberspacher Airtronic D2 Diesel Heater - 2.2kW Motorhome Kit
Product Description
Eberspacher D2 RV kit includes:
1 Cool air intake
1 Warm air outlet
2m of 60mm ID ducting
Mounting bracket
Fuel standpipe pickup (for tank)
8m fuel line
1m stainless exhaust pipe
1m combustion intake pipe
Muffler
Bag of mounting hardware
See images for more details
Eberspacher Heater features:
Factory assembled components for easy "Plug and Play" installation
Electronic speed control with continuous monitoring
Low noise ideal for your motorhome or caravan
Low power and fuel consumption
Continious monitoring
Fan function possible for air circulation
Diagnostic system for easy fault finding
Heat settings: Power, High, Medium, Low
Heat flow watts: 2200, 1800, 1200, 850
Air throughput m3/h: 87, 72, 50, 35
Electrical consumption: 34W, 23W, 12W, 8W
Fuel consumption l/hr: 0.28, 0.23, 0.15, 0.10
Weight: 2.7kg
The surface mounted Eberspacher digital controller with integrated room temperature sensor has a range of features. These include simple ON/OFF switching, digital display of set point and ambient temperatures, system diagnostic code readout, ventilation switching option, LED indication of Heating on (green) and ventilation on (blue).
A 7 Day Programmable Controller is available as an upgrade however it isn't as simple to use as the standard 'digital controller'.
Customer Asked Questions:
Q) I want to install this heater in a caravan. Do I have to get a diesel tank made up?
A) In vehicles without existing diesel tank (petrol vehicles or caravans) a seperate fuel tank in needed. You could get one made up but the most common practise is to use a 'red' outboard fuel tank, the type used in boating. They come in a range of sizes, small enough to be positioned in a locker.
Additional Information
| Voltage | 12V or 24V |
| Heating capacity | 2200W |
| Fuel Type | Diesel |
| Fuel consumption (max) | 0.28L/h |
| Power consumption (max) | 34W |
| Dimensions (mm) | 305L x 115W x 122H |
| Weight | 2.7kg |
| Warranty | 2 year |
Customer Review
Reviews
-
Review by Darren (Posted on 21/09/10)What a great heater
I have just fitted D2 to my VW van. It heats up the entire van much quicker than I expected. Its not offen that I find something really well let alone better than expected. I'm very happy with the purchase and demo given to us by RV World. Regards Darren. -
Review by PW (Posted on 7/12/09)Brilliant
I fitted one of these units to our Mitsubishi Canter Cabover to replace a gas heater, and have no regrets. My wife is always telling me to turn the heat down, it's that good. Living in Southland you need an efficient heater, and you would not find a better type. We sleep with it set down to approx 16 deg at night with no worries. I wouldn't leave gas heating going at night. Also good to know you can drive in winter with the heater left on.
The unit is straight forward to fit, you just have to plan it out before you start.
Thanks Craig for the help and advice prior to my purchase. -
Review by Guest (Posted on 11/11/09)Good heater
We have the Eberspacher D2 Airtronic diesel heater. So far we are very happy with it. We were concerned about battery drain and noise, but it only uses 2-3 amps while up and running and the noise did not cause us any problems.
