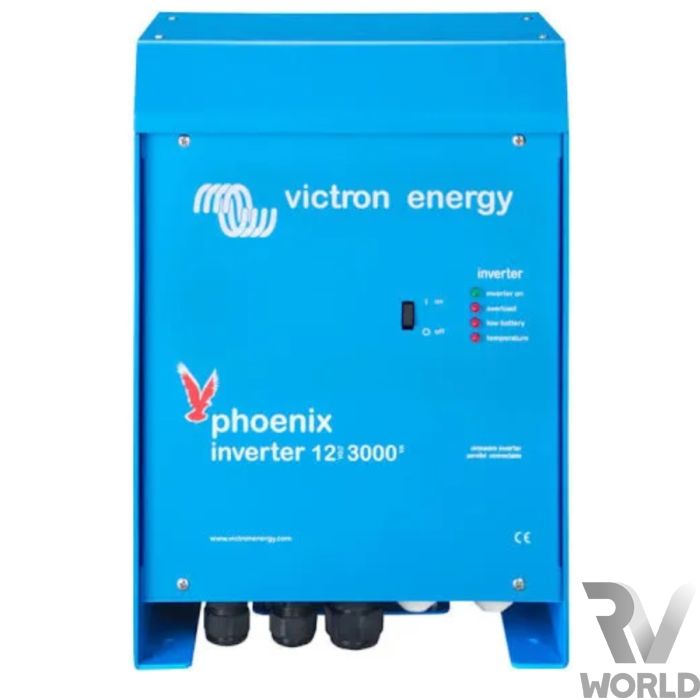

3000W Pure Sine Wave Inverter. Victron Phoenix 3000
Product Description
Inverter features:
Superior engineering
Developed for professional use, the Phoenix series of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any type of load.
Extra start-up power
A unique feature is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix inverters, however, are well suited to power up difficult loads such as frige compressors, electric motors and similar appliances.
Virtually unlimited power thanks to parallel and 3-phase operation capability
Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.
If you require an inverter/charger with an automatic transfer switch, we recommend using the MultiPlus inverter/charger series instead.
Battery connection: M8 bolts
Additional items available for this inverter: Phoenix Inverter Control Panel
Additional Information
| Input voltage options | 12V, 24V or 48V |
| Input voltage range | DC 9.5–17V, 19–33V or 38-66V |
| Output voltage (AC) | 230V ± 2% |
| Output frequency | 50HZ |
| Output power (continous) | 3000W |
| Output power (surge) | 6000W |
| Input Power (no load) | 5-10W |
| Input Power (search mode) | 2-3W |
| Output waveform | Pure sine wave |
| Optimum efficiency | 93% - 95% |
| Protection | Output short circuit, overload, battery voltage too low or too high, over temeprature. |
| Weight | 18kg |
| Dimensions (mm) | 362L x 258W x 218D |
| Warranty | 2 years |
